Product Details:
Payment & Shipping Terms:
|
| Material: | Iron Wire | Surface Treatment: | Hot Dipped Galvanized/pvc Coated |
|---|---|---|---|
| Coil Weight: | 20-50kg/coil | Feature: | Great Protection |
| Application: | Grass Boundary,railway,highway And So On | Packing: | In Bluck Or Pallets |
| Wire Gauge: | 1.4-2.5mm | Wire Diameter: | 1.4x1.4mm,1.5x1.5mm,1.65x1.65mm,etc |
| High Light: | security barbed wire,stretching barbed wire |
||

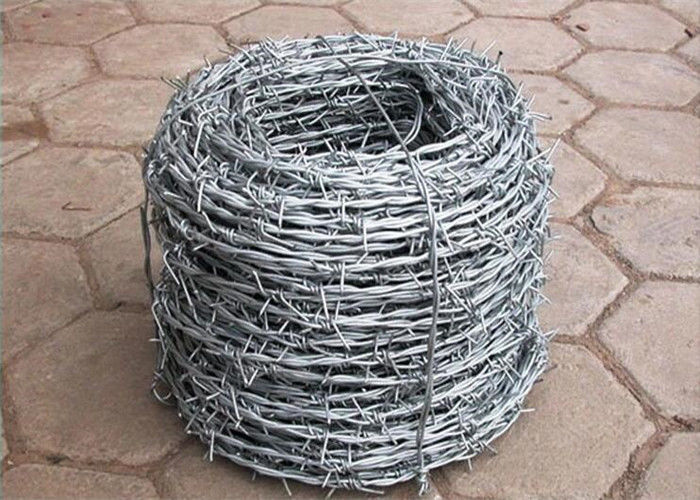

Electro Galvanized Steel Barbed Wire To Protect Vineyard 2mm Diameter 15mm Barb
Product Description
Barbed wire, also called barb wire, is a type of steel fencing wire constructed with sharp edges or points arranged at intervals along the strand(s). Due to the high security and lower cost, barbed wire is now widely used as a security barrier. According to different surface treatment, there are mainly two types of barbed wire: hot dipped galvanized and PVC coated.
Hot dipped galvanized barbed wire specification
· Zinc surface density: (the more zinc, the corrosion resistance is stronger.)
· Horizontal line wire/barb wire (g/m2): 80/60, 114/85, 175/147, 260/240.
Galvanized single strand barbed wire size
· Made of l line wire with 4 spikes, spaced at a distance of 70 mm - 120 mm.
· Horizontal line wire diameter 2.8 mm.
· Barb wire diameter 2.0 mm.
· Number of spikes 4.
· Packed in coils: 25-45 kg/coil, or 100 m, 500 m/coil.
Galvanized barbed wire with double strand size
· Made of 2 twisted line wires with 4 spikes, spikes spaced at a distance of 75 mm - 100 mm.
· Horizontal wire barbed wire diameter 2.5 mm/1.70 mm.
· Spikes wire diameter 2.0 mm/1.50 mm.
· Strength of horizontal line wire: min. 1150 N/mm2 .
· Strength of barb wire: 700/900 N/mm2.
· Stranded wire breaking load: min. 4230 N.
· Packed in coils: 20-50 kg/coil or 50 m - 400 m/coil.
|
Type
|
Wire Gauge(SWG)
|
Barb Distance (cm)
|
Barb Length (cm)
|
|
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire
|
10# x 12#
|
7.5-15
|
1.5-3
|
|
|
12# x 12#
|
||||
|
12# x 14#
|
||||
|
14# x 14#
|
||||
|
14# x 16#
|
||||
|
16# x 16#
|
||||
|
16# x 18#
|
||||
|
PVC coated barbed wire; PE barbed wire
|
before coating
|
after coating
|
||
|
1.0mm-3.5mm
|
1.4mm-4.0mm
|
|||
|
BWG11#-20#
|
BWG8#-17#
|
|||
|
SWG11#-20#
|
SWG8#-17#
|
|||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
|
||||
Product Detail
Package
It is always packed by 25kg/coil or 50kg/coil.
1) Packed by water proof paper.
2) Packed by woven bag.
3) Packed by carton.
4) Packed by wooden pallet.
5) We can also make the package according to your requests.
Application of the Barbed Wire
Barbed wire is commonly used in protection of grass boundary,railway,highway, agricultural, domestic and commercial applications.
Barbed wire installed in conjunction with various fencing types can hold a visual and physical deterrent - we recommend warning signs if used near public areas. Barbed wire also has many commercial uses but for higher security applications, we would recommend barbed tape or razor wire.
