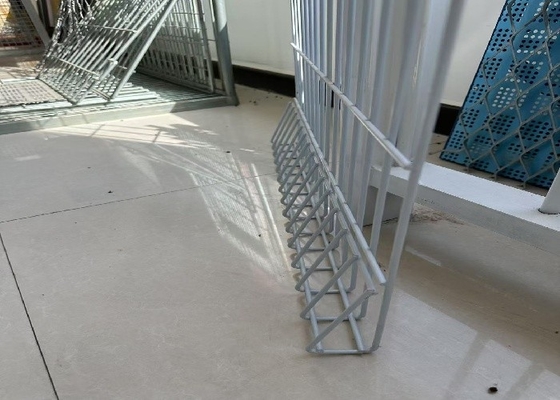

Triangle Bending Fence Panel - Low Carbon Steel Custom Heights School Garden Guard
Product Overview:
The Triangle Bending Fence Panel is a low-carbon steel fencing system designed for versatile security and aesthetic applications. Featuring a unique triangular wire mesh pattern with powder-coated finish, this fence combines functional protection with decorative appeal, ideal for schools, gardens, playgrounds, and residential properties.
Technical Parameters:
| Parameter |
Details |
| Material |
Low-Carbon Steel (Q195/Q235) |
| Wire Diameter |
3.5mm / 4mm / 5mm (post-powder coating) |
| Mesh Options |
50×50mm, 50×100mm, 50×150mm, 50×200mm, 55×200mm |
| Panel Height |
0.63m–2.03m (7 standard sizes) |
| Post Types |
Round, Square, Peach-shaped |
| Certification |
ISO 9001:2015 |
| Packing |
Palletized for safe shipping |
Primary Applications:
Educational Facilities: Secure school perimeters & playground boundaries.
Residential Security: Garden fencing & backyard enclosures.
Public Spaces: Decorative barriers for parks and community areas.
Commercial Use: Light industrial zone partitioning.
Key Advantages:
1. Customizable Design
- Height Flexibility: Choose from 0.63m (24.8") to 2.03m (80") heights.
- Mesh & Post Options: Multiple hole sizes (50-200mm) and post shapes for diverse needs.
2. Enhanced Durability
- Powder-Coated Finish: Resists rust, UV damage, and scratches (RAL colors available).
- Robust Construction: 3.5-5mm thick wires withstand impact and weather extremes.
3. User-Friendly Features
- Child-Safe Design: Smooth edges and small mesh prevent climbing injuries.
- Quick Installation: Prefabricated panels with universal post compatibility.
4. Aesthetic Versatility
- Decorative Appeal: Triangular mesh adds visual interest to landscapes.
- Color Matching: Custom powder coatings to blend with surroundings.
±1mm dimensional tolerance via laser-guided cutting
Custom aperture/height adjustments within 24hr tooling change
100% automated weld inspection system
Eco-friendly powder coating (zero VOC emissions)
Production process:
The production of our Triangle Bending Fence Panel begins with high-quality low-carbon steel coils, which undergo precision cold-drawing to achieve target wire diameters (3.5/4/5mm). Using CNC-controlled bending machines, wires are formed into triangular wave patterns, creating the signature mesh structure with 50-200mm apertures. Panels are robotically welded to vertical support wires, ensuring uniform spacing and structural integrity. Posts (round/square/peach-shaped) are fabricated from steel tubes via hydraulic press forming, then seamlessly integrated with panels through MIG welding.
A 6-stage surface treatment follows:
- Alkaline degreasing and acid pickling for impurity removal
- Phosphating to enhance coating adhesion
- Electrostatic powder coating (RAL color options)
- High-temperature curing (200°C for 15 mins)
- UV resistance testing
- Edge smoothing for child-safe profiles
Final assemblies undergo ISO 9001-certified QC checks, including mesh tension tests (200N load) and salt spray corrosion validation (500+ hours). Panels are palletized with corner protectors and shrink-wrapped for global logistics.
Quality Assurance
ISO 9001 Certified: Consistent manufacturing standards.
Load Tested: Panels withstand 200N horizontal force (EN 1176 compliant).
Corrosion Resistance: Salt spray tested for 500+ hours.
Packaging & Support:
Export-Ready Pallets: Weatherproof wrapping for global shipping.
Technical Drawings: CAD files provided for installation planning.
Custom Orders: Non-standard sizes/colors available (MOQ: 20 panels).
Contact us to design your perfect perimeter solution today!
