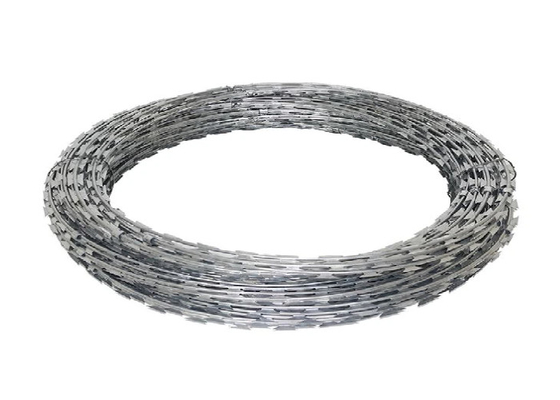

High Security Razor Barbed Wire - Anti Climb Corrosion Resistant Durable Fencing
Product Overview:
Our High Security Razor Barbed Wire is engineered to provide maximum perimeter protection for military bases, correctional facilities, and other high-risk areas. Featuring 420 stainless steel blades with a 30° cutting angle and a dual-core galvanized steel wire, this anti-climb barrier delivers superior intrusion prevention while maintaining exceptional weather resistance. The pre-formed concertina coils allow for rapid deployment, making it ideal for both permanent installations and temporary security needs.
Key Features:
1.Military-Grade Security
- 60mm long stainless steel blades with 30° cutting angle
- Dual-core galvanized steel wire (2.5mm+2.0mm) resists bolt cutters
- Climb-resistant spiral design with 450mm coil diameter
2.Extreme Durability
- Hot-dip galvanized (300g/m²) + PVC coated options
- Withstands temperatures from -40°C to 80°C
- Salt spray resistant (2000+ hours ASTM B117)
3.Flexible Deployment
- Pre-formed concertina coils for rapid installation
- Compatible with all standard fence systems
- Modular expansion capability
Technical Specifications:
| Parameter |
Specification |
| Specification |
420 Stainless Steel |
| Core Wire |
2.5mm+2.0mm Galvanized Steel |
| Coil Diameter |
450mm (±20mm) |
| Blade Spacing |
34mm (±2mm) |
| Roll Length |
10m or 15m (custom available) |
| Tensile Strength |
≥1200N (core wire) |
| Coating |
Class 3 Galvanized or 0.6mm PVC |
Applications:
Military bases and border security
Prisons and detention centers
Critical infrastructure protection
High-value storage facilities
Government and embassy compounds
Manufacturing Process:
Wire Drawing: High-carbon steel wire is cold-drawn to precise diameters (2.5mm + 2.0mm).
Blade Stamping: 420 stainless steel blades are precision-stamped and heat-treated for hardness (HRC 50-55).
Spiral Coiling: Automated machinery forms the wire into 450mm diameter concertina coils.
Galvanizing: Hot-dip galvanizing at 450°C for 300g/m² zinc coating.
PVC Coating (Optional): Electrostatic spray for color and extra corrosion resistance.
Quality Control: Salt spray testing (2000+ hours ASTM B117) and load verification.
Advantages:
Sharper Blades: 40% more cutting efficiency than standard barbed wire.
Longer Lifespan: 10+ years of service in harsh environments.
Faster Installation: Pre-formed coils reduce setup time by 5X.
Customizable: Available in galvanized or PVC-coated finishes.
FAQ:
Q: Installation spacing recommendation?
A: Every 200mm for maximum security, 300mm for standard protection.
Q: Minimum order quantity?
A: 200 rolls for standard configurations.
Q: Lead time for custom orders?
A: 2-3 weeks for special blade patterns/coatings.
Q: Maintenance requirements?
A: Annual visual inspection recommended.
For quotes & customization, contact us today!
