358 Anti Cut Fence Panel - High Strength Welded Mesh for Maximum Security Applications
Product introduction:

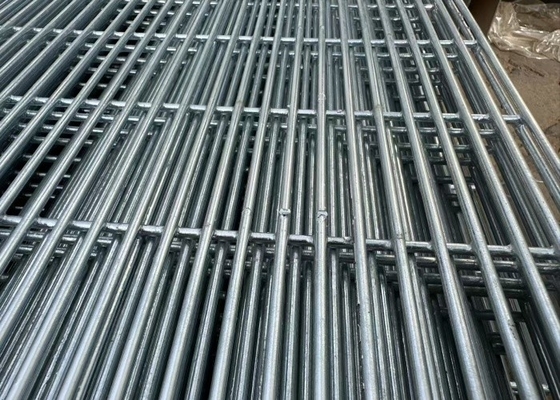

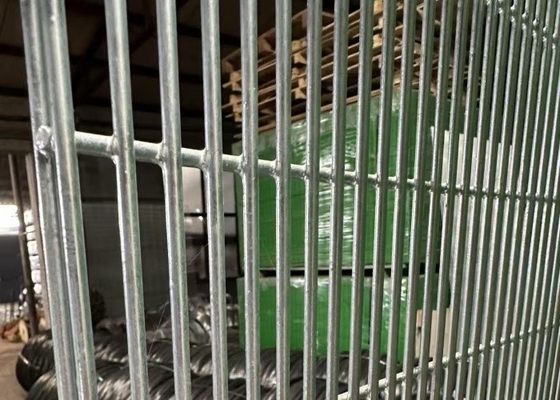

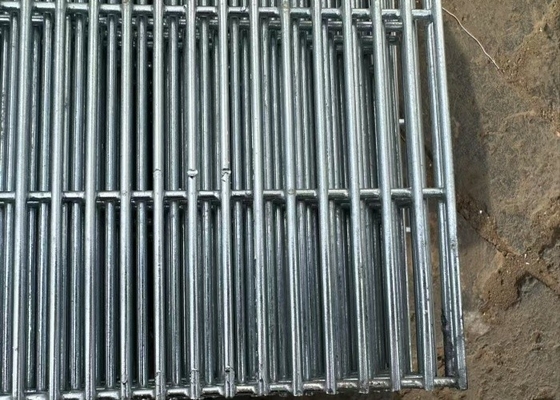

The 358 Anti Cut Fence Panel is engineered for maximum perimeter security, featuring a 76.2mm x 12.7mm (3" x 0.5") welded mesh design that prevents climbing, cutting, and intrusion. Made from high-tensile galvanized steel, this fence panel is ideal for high-risk facilities requiring tamper-proof, anti-scale protection.
Technical Data Sheet:
| Parameter |
Specification |
| Mesh Size |
76.2mm (L) x 12.7mm (W) (3" x 0.5") |
| Wire Diameter |
4.0mm (vertical) / 5.0mm (horizontal) |
| Material |
High-tensile steel |
| Coating |
Hot-dip galvanized (300g/m²) or PVC-coated |
| Panel Size |
2.4m (H) x 3.0m (W) (Custom sizes available) |
| Frame |
50x50mm steel tubing (2.5mm thickness) |
| Security Standards |
ISO9001:2015 |
Key Features:
1.Superior Anti-Cut & Anti-Climb Design
- Ultra-small mesh apertures (3" x 0.5") prevent hand/foot holds
- 4.0mm-5.0mm thick wires resist bolt cutters and sawing
2.Military-Grade Durability
- Hot-dip galvanized coating (300g/m²) for 25+ years of rust resistance
- Optional PVC coating (RAL 6005 green/black) for added UV/chemical protection
3.Crash & Impact Resistant
- Reinforced 50x50mm steel frame for structural rigidity
- PAS 68 certified for vehicle impact resistance
4.Easy Installation & Low Maintenance
- Pre-assembled panels with bolt-on brackets for quick deployment
- No welding required; modular design fits curved perimeters
Manufacturing Process:
Wire Drawing – Cold-drawn steel wire (4.0mm-5.0mm) for high tensile strength
Automated Welding – Precision CNC welding ensures uniform mesh structure
Hot-Dip Galvanizing – 450°C zinc immersion for corrosion resistance
PVC Coating (Optional) – Electrostatic spray for color & extra durability
Panel Assembly – Robotic welding of 50x50mm steel frames
Quality Control – Salt spray testing, mesh tension checks, and load testing
Applications:
Prisons & Detention Centers – Prevents escapes and unauthorized access
Military & Government Sites – Protects against forced entry
Airports & Critical Infrastructure – Perimeter security for high-risk zones
Industrial Facilities – Secures oil refineries, power plants, and data centers
Commercial Properties – VIP estates, banks, and high-value storage
FAQ:
Q: How does the 358 mesh compare to chain-link fencing?
A: Far more secure—its small apertures and thick wires resist cutting/climbing, unlike chain-link.
Q: What’s the lifespan in coastal areas?
A: 20+ years with galvanized coating; 30+ years with PVC.
Q: Is customization possible?
A: Yes—custom heights, widths, and coatings available.
Q: How fast can it be installed?
A: 3x faster than welded fences due to pre-assembled panels.
Custom Solutions Available: Contact our engineering team for project-specific configurations, including non-standard dimensions, special fixings, or enhanced security features.
