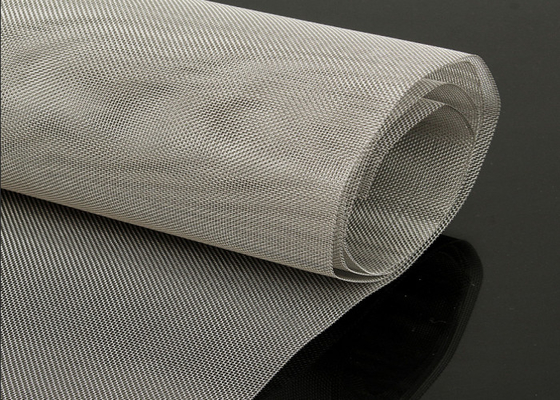

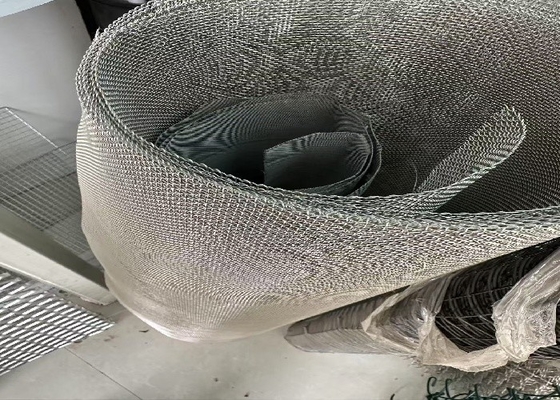

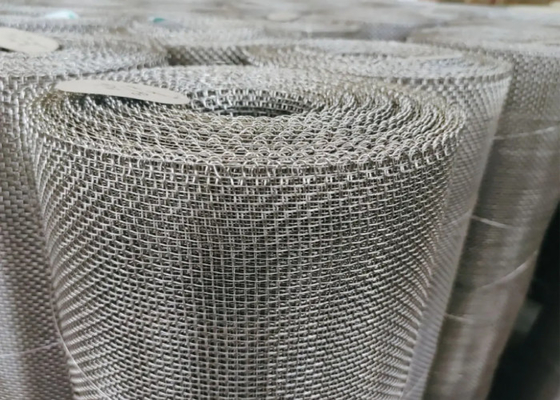

316 Stainless Steel Filter Mesh - High Temperature Resistant Durable Screening
Product Overview:
Our 316 Stainless Steel Filter Mesh is engineered for extreme durability and precision filtration in demanding industrial environments. Made from marine-grade 316 stainless steel, this mesh offers superior corrosion resistance, high-temperature stability (up to 800°C), and long-lasting structural integrity, making it ideal for chemical processing, oil & gas, and food-grade applications.
Key Features:
1.Premium 316 Stainless Steel
- 18% chromium + 2-3% molybdenum composition resists pitting/crevice corrosion
- Saltwater/acid/alkali resistant – outperforms 304 SS in harsh environments
2.High-Temperature Performance
- Withstands continuous 800°C / intermittent 900°C
- No deformation or oxidation scaling
3.Precision Filtration
- Standard mesh counts: 10-500 (custom down to 1μm)
- Smooth surface finish (Ra≤0.6μm) prevents particle trapping
4.Mechanical Strength
- Tensile strength: ≥520MPa
- Elongation: ≥40% (maintains shape under pressure)
5.Easy Integration
- Available as rolls, discs, or custom-shaped filters
- Weld-ready edges for modular systems
Technical Data Sheet:
| Parameter |
Specification |
| Material |
316 Stainless Steel (AISI 316L optional) |
| Wire Diameter |
0.025mm - 2.0mm |
| Mesh Count |
10-500 (or 1-5000μm pore size) |
| Width |
100mm - 2000mm (custom widths available) |
| Max Temp |
800°C continuous / 900°C short-term |
| Surface Finish |
Plain weave/Twill Dutch weave/Sintered |
| Certifications |
ISO 9001, ASTM E2016 |
Applications:
Oil & Gas: Wellhead screens, catalyst recovery
Chemical: Acid filtration, reactor protection
Pharma: Sterile air vents, fermentation
Food: Brewery sieves, edible oil refining
Energy: Nuclear coolant filters, exhaust systems
Manufacturing Process:
1. Wire Drawing
Cold-drawn to ±0.001mm precision
Annealed for uniform ductility
2. Weaving
Computer-controlled looms for consistent mesh
Optional 5-layer sintered mesh for nano-filtration
3. Heat Treatment
Stress-relieved at 400°C
Bright annealed
FAQ:
Q1: What is 316 stainless steel mesh good for?
A: It’s perfect for harsh environments like seawater, chemicals, and high heat. Common uses include oil filters, food processing, and medical equipment.
Q3: Is this mesh stronger than regular steel wire mesh?
A: Yes, 316 stainless steel is much stronger and won’t rust like normal steel, even in wet or salty conditions.
Q4: What sizes are available?
A: We offer fine to coarse mesh (10-500 holes per inch) and custom sizes if needed.
Q5: How long does it last?
A: With proper care, it can last 10+ years even in tough conditions.
Q6: Can I cut or shape it myself?
A: Yes, but for best results, we recommend professional laser or waterjet cutting to avoid fraying.
Q7: Is it safe for food or medical use?
A: Yes! It meets FDA standards for food and medical safety.
Q8: How do I clean it?
A: Use warm water, mild soap, or an ultrasonic cleaner for deep cleaning.
