High-Security Steel Palisade Fencing - Durable & Tamper-Proof for Perimeter Protection
Product Introduction:

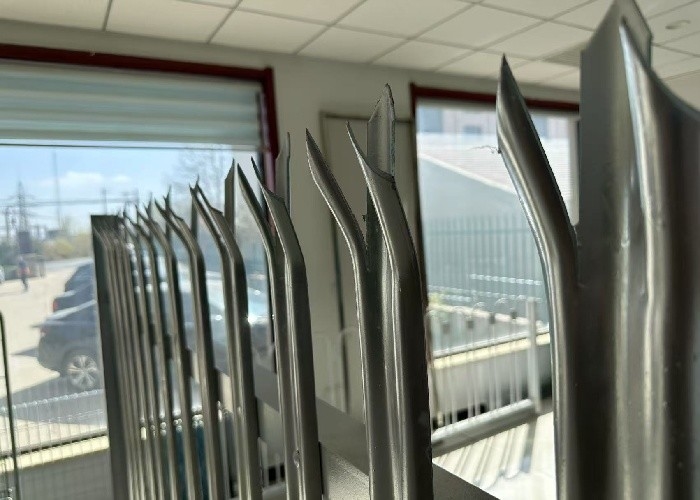

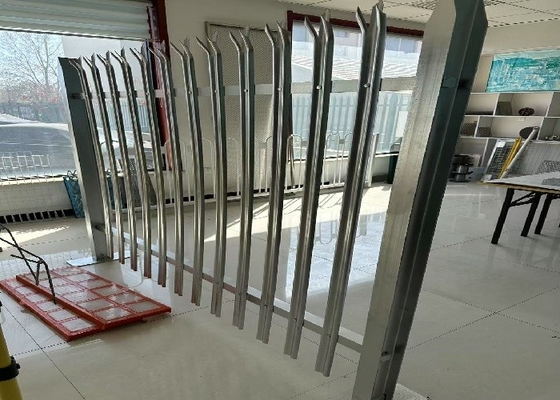

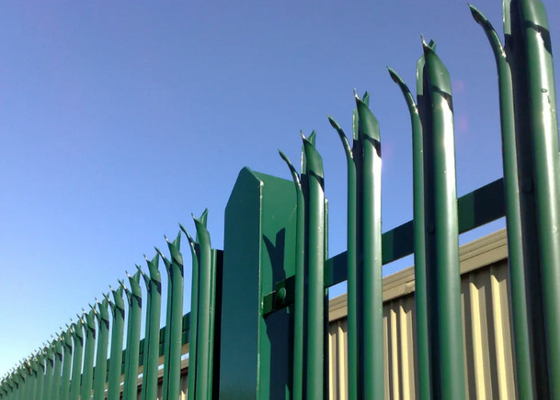

Our Steel Palisade Fence is a high-security perimeter barrier designed for maximum protection and durability. Featuring vertical steel pales with pointed tops and robust horizontal rails, this anti-climb fencing system provides superior security for industrial sites, utilities, and high-risk facilities. The hot-dip galvanized finish ensures decades of maintenance-free service.
Specification Table:
| Parameter |
Details |
| Material |
S275JR steel (EN 10025 standard) |
| Pale Dimensions |
50x5mm / 65x5mm / 75x6mm |
| Pale Spacing |
100mm / 125mm / 150mm |
| Panel Height |
1.8m / 2.1m / 2.4m / 3.0m |
| Panel Width |
2.5m / 3.0m standard |
| Surface Treatment |
Hot-dip galvanized (minimum 85μm) + optional powder coating |
| Post Type |
80x80mm / 100x100mm square hollow section |
| Security Level |
SR3 (BS 1722 standard) |
| Wind Load Rating |
Up to 0.8kN/m² |
Applications:
Critical Infrastructure Protection:Power plants and substations,Water treatment facilities,Telecommunications sites
High-Security Facilities:Correctional institutions,Military installations,Government buildings
Industrial & Commercial:Warehouses and logistics centers,Airports and transportation hubs,Manufacturing plants
Public Safety:Schools and hospitals,Public utilities,Border protection
Features:
The Steel Palisade Fence delivers enhanced security through its anti-climb design featuring 45° pointed pales, tamper-proof shear bolt fixings, and absence of horizontal footholds, while offering superior durability with hot-dip galvanization (EN ISO 1461 compliant), optional polyester powder coating, and a 25+ year lifespan. This low-maintenance solution requires no painting and allows easy replacement of damaged sections, combined with flexible installation options including concrete/ground-spike foundations, adjustable post heights, and curved/angled configurations. Its imposing vertical profile serves as an effective visual deterrent, available in custom colors to balance security needs with aesthetic considerations while maintaining transparency.
Manufacturing Process:
Manufacturing Process: The production of our Steel Palisade Fence begins with material preparation, where steel coils are precisely unrolled, leveled, and verified through ultrasonic thickness testing. The pales are then formed through CNC punching of steel strips, precision bending to 45° points, and automated length cutting. During panel assembly, robotic welding ensures secure attachment of pales to rails while jig-mounted alignment guarantees perfect geometry, followed by thorough weld inspection (MPI testing). The surface treatment involves a comprehensive 7-stage pretreatment process (from degreasing to phosphating), hot-dip galvanizing at 450°C, with optional powder coating for enhanced protection. Rigorous quality control measures include dimensional tolerance checks, coating thickness verification, and BS 1722 load testing. Finally, finished panels are carefully packaged with protective separators, weatherproof wrapping, and custom crating for export-ready delivery.
Advantages:
Impact Resistance: Withstands 50J impact (EN 1317 certified),Climb Resistance: Exceeds CPNI security standards,Corrosion Protection: Salt spray tested to 1000 hours,Structural Integrity: Finite element analysis optimized,Sustainability: 100% recyclable materials.
Custom heights, colors and security enhancements available upon request. Installation guides and CAD drawings provided with all orders.For quotes & customization, contact us today!
