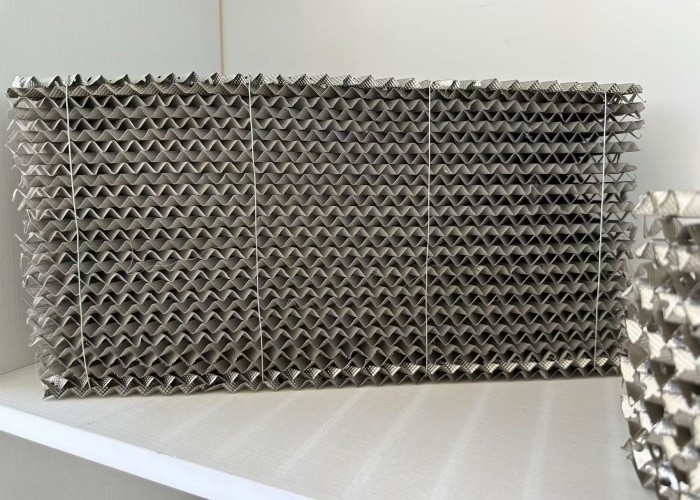

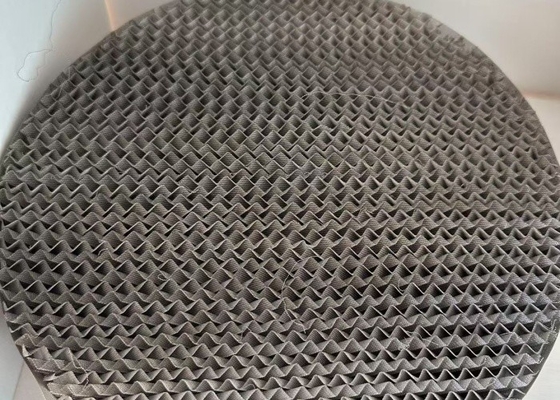

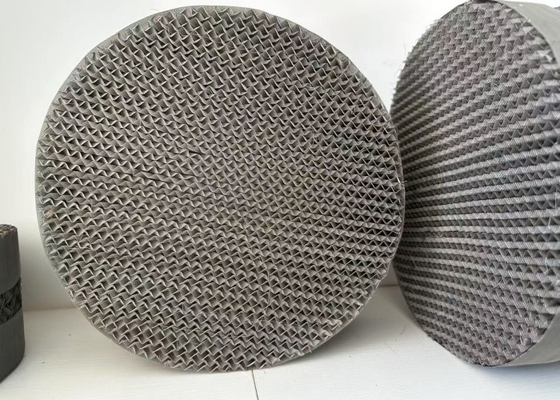

Metal Structured Packing - High Efficiency, Low Pressure Drop for Distillation Towers
Product Overview:
Metal Structured Packing is a high-performance tower internals solution designed to maximize mass transfer efficiency while minimizing energy consumption in distillation, absorption, and stripping processes. Engineered with precision-corrugated metal sheets, this packing delivers superior vapor-liquid contact, ultra-low pressure drop, and exceptional durability, making it ideal for petrochemical, refining, and gas processing applications.
Technical Data Sheet:
| Parameter |
Specification |
| Material Options |
SS304,316L,304L,SS316L |
| Surface Area |
125–750 m²/m³ (customizable for process needs) |
| Pressure Drop |
10–50 Pa/m (30–50% lower than random packing) |
| HETP (Height Equivalent to a Theoretical Plate) |
0.2–0.5m (optimized for high purity) |
| Capacity (Cₛ Factor) |
0.05–0.12 m/s (high throughput) |
| Operating Temperature |
-200°C to +550°C (material-dependent) |
| Corrosion Resistance |
Excellent (316L for acidic/chloride environments) |
| Certifications |
ISO 9001 |
Features:
Optimized Geometric Design
Precision-engineered corrugation angles (45° and 60° options)
Advanced surface texturing enhances liquid film distribution
Calculated void fractions between 95-98% for optimal flow characteristics
Customizable cell sizes from 5mm to 20mm
Material Excellence
Available in 304SS, 316L SS, carbon steel
Optional electropolished finish (Ra ≤ 0.4μm) for fouling resistance
Special alloy options for extreme service conditions
40-60g/m² hot-dip galvanized underlayer for corrosion protection
Performance Advantages
Mass transfer efficiency: HETP as low as 0.2m
Pressure drop reduction up to 50% versus conventional packing
Capacity factors (Cₛ) ranging 0.05-0.12 m/s
Turndown ratios exceeding 5:1
Applications:
Petrochemical Processing:
Crude oil atmospheric/vacuum distillation
Aromatics (BTX) separation columns
Olefin purification systems
Solvent recovery units
Gas Treatment:
Amine contactors for acid gas removal
Glycol dehydration towers
LNG purification trains
CO₂ capture absorption columns
Specialty Chemical:
High-purity pharmaceutical distillation
Electronic-grade chemical production
Fine chemical separation processes
Specialty Chemical:
High-purity pharmaceutical distillation
Electronic-grade chemical production
Fine chemical separation processes
Manufacturing Process:
Material Selection
High-purity alloys verified via XRF analysis.
Precision Corrugation
CNC hydraulic forming ensures ±0.5° angle accuracy.
Surface Treatment
Electropolishing (Ra ≤0.4μm) or PTFE coating for fouling resistance.
Quality Control
3D laser scanning for dimensional verification.
Salt spray testing (1,000+ hours for coated variants).
Request samples with your operating parameters for a free efficiency analysis!
