Product Details:
Payment & Shipping Terms:
|
Shape: | Round/square, Plate | Size: | Dia:125Y/250Y/350Y/450Y |
---|---|---|---|
Feature: | High Mass Transfer | Description: | Mass Transfer And Separation |
Packing Detail: | Carbon Box Or As Requirment | Materiel: | SS304,SS316L,201,Carbon Steel,etc |
Port: | XinGang,TianJin | Lead Time: | 3 Days For One 20 Foot Container |
Highlight: | structured packing column,structure packing in distillation |

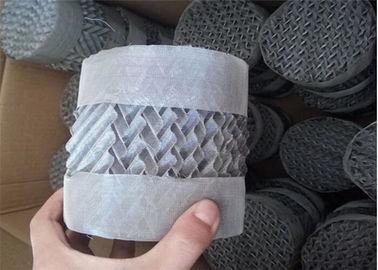

Aluminum Metal Structured Packing Wire Gauge Structured Packing For Absorption
Product Description
Metal structured corrugated packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbon steels. Aluminum, copper bronze etc. Further materials available on request.
Product Application
Fine chemical, flavour factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
Product Specification
Model | Structured Packing | |||||||
Material | SS 304, 304L, 410, 316, 316L, etc. | |||||||
Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
(m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
Typical Application | Absorption, scrubbing and stripping services |
Product Advantage
Product Image
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
