Lightweight Structured Packing Column , Structure Packing In Distillation

Lightweight Structured Packing Column , Structure Packing In Distillation
Lightweight Structured Packing Column , Structure Packing In Distillation Lightweight Structured Packing Column , Structure Packing In Distillation

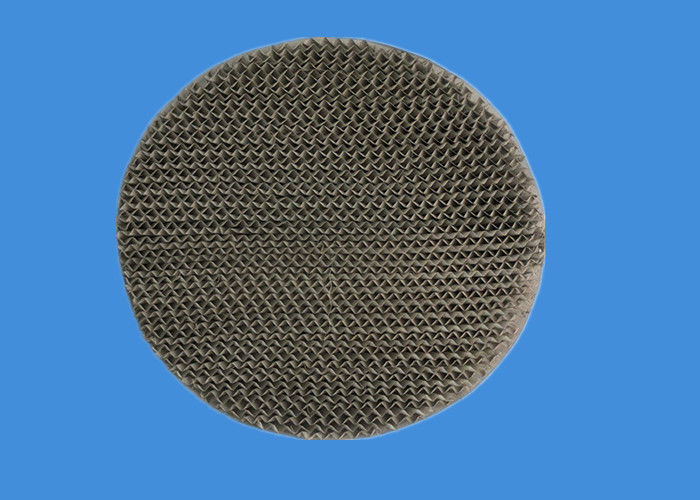

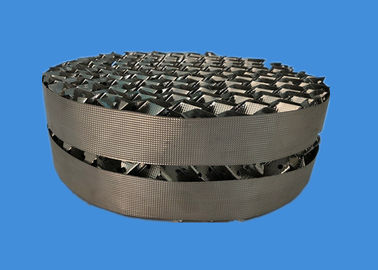

Large Image :  Lightweight Structured Packing Column , Structure Packing In Distillation

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 20 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Certification: ISO 9001
Type No.: 250AX,500BX,700CY Keyword: Metal Wire Gauze Structured Packing
Export Markets: America, Europe, Aisa Application: Absorption, Scrubbing, And Stripping Services
Highlight:

distillation packing

,

stainless steel packing

Stainless Steel Metal Structured Column Packing For Desorption Tower And Column


Product Description



Standard metallic packing includes:metellic perforated corrugated plate,metallic thornlike perforated corrugated plate,metal plate and corrugated net,metallic threadlike perforated corrugated plate,corrugated metal wire net.



Metal structured packing is formed from thin corrugated metallic plates or wire gauze, which at uniform geometry arranged and neatly piled in the tower. Metal structured packing is widely used in absorption and distillation columns and chemical reactors.



Metal corrugated sheet packing has characteristics such as high strength, corrosion resistance, low pressure drop, high mass transfer efficiency, uniform gas-liquid distribution, large flow rate and good anti blocking ability.



 Product Specification



Model
Specific surface (m2/m3)
Liquid load
(m3/m2·hr)
Obl.
angle
Pressure drop
(Pa/m)
NTS
(1/m)
125Y
125
0.5-100
45
200
1~1.5
250Y
250
0.5-100
45
2230
2~3
350Y
350
0.5-80
45
280
3~4
500Y
500
0.5-80
45
300
5~6
125X
125
0.5-100
45
140
0.8~1
250X
250
0.5-100
45
180
1.6~2
350X
350
0.5-80
45
220
2.3~3
500X
500
0.5-80
45
250
         3~4



Product Advantage


(1) High capacity.

(2) High separation efficiency.

(3) Low pressure drop.

(4) Large flexibility, and scale effect is not obvious.

(5) Suitable for all tower diameters.

(6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic
acid and Cl- .



 Product Application



It is widely used in separating heat sensitive materials,such as in vacuum fraction processes in the petroleum,chemistry,flavour factory and medicine industries. Thy can also be used in isotope separation.
