Low Working Load 304 Stainless Steel Packing , Structured Tower Packing

Low Working Load 304 Stainless Steel Packing , Structured Tower Packing
Low Working Load 304 Stainless Steel Packing , Structured Tower Packing Low Working Load 304 Stainless Steel Packing , Structured Tower Packing

Large Image :  Low Working Load 304 Stainless Steel Packing , Structured Tower Packing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 20 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Certification: ISO 9001
Type No.: 250AX,500BX,700CY Keyword: Metal Wire Gauze Structured Packing
Export Markets: America, Europe, Aisa Application: Absorption, Scrubbing, And Stripping Services
High Light:

structured tower packing

,

stainless steel packing

Stainless Steel 304 Metal Structured Packing Metal Tower Packing For Desorption


Product Description

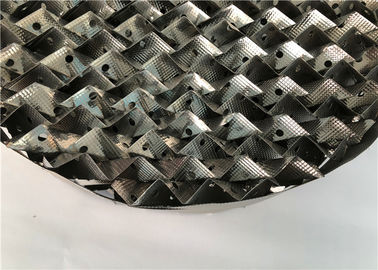

Metal structured tower packing you get greater surface area per cubic foot than random packings of equal capacity. A series of perforated vertical corrugated layers make up each sheet metal structured tower packing element. Gas/liquid is spread and distributed radially from layer to layer within the element. Surface texturing on the sheet metal further enhances wettability and mass transfer. Installed in opposing 90°-rotated sections, these sheet metal structured tower packing elements promote thorough mixing and even gas/liquid distribution across the radius of the tower. Wiper bands throughout the packing prevent fluid from migrating between the packing and vessel wall.



 Product Specification



Model
Specific surface (m2/m3)
Liquid load
(m3/m2·hr)
Obl.
angle
Pressure drop
(Pa/m)
NTS
(1/m)
125Y
125
0.5-100
45
200
1~1.5
250Y
250
0.5-100
45
2230
2~3
350Y
350
0.5-80
45
280
3~4
500Y
500
0.5-80
45
300
5~6
125X
125
0.5-100
45
140
0.8~1
250X
250
0.5-100
45
180
1.6~2
350X
350
0.5-80
45
220
2.3~3
500X
500
0.5-80
45
250
         3~4



Product Advantage

  • High number of theoretical plates, large flux and low pressure drop;
  • Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
  •  Large operation elasticity;
  • No obvious amplification effect;
  • Fulfilling the requirements of precision, large and high vacuum distillation units, providing favorable conditions for distillation separation system, heat sensitive material and high purity products.

Product Application



Metal structured tower packing used in petrochemical, fertilizer industries, pharmaceutical industry, natural gas purification, smelting and other industrial sectors, the largest 15m in diameter than the tower, is the mainland of the tower and an important area of application.



Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
