| Material: | Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. | Size: | 16mm,25mm,38mm,50mm, 76mm,or Customized |
|---|---|---|---|
| Package: | Jumbo Bag, Carton Box, Wooden Case, Or Customized | Certificate: | ISO 2008 |
| Application: | Industry, Adsorption, Scrubbing, Stripping | Product Name: | Stainless Steel Metal Raschig Ring |
| Highlight: | pall ring packing,random packing distillation column |
||
SS 304 Metal Random Packing Used In Fine Chemicals , Spices , Isomer Separation
Product Description

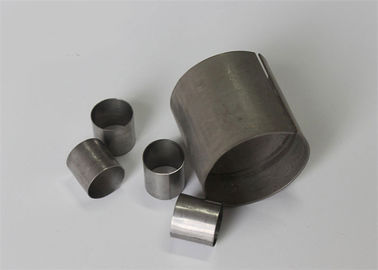

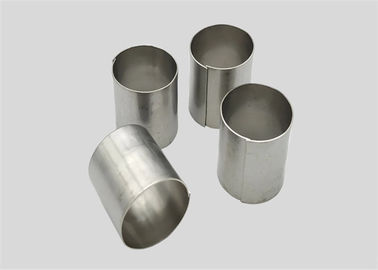

Metal Rasching Rings are available in a wide range of carbon and stainless steels(ss304 316 410...etc). Since 1914 when F. Raschig invented this type of ring for tower packing, random tower packing has been developed extensively. The Bridge Raschig Ring is now used in many applications, but particularly in supporting catalyst beds. The bellow data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: Carbon steel, stainless steel including 304, 304L, 410, 316, 316L.
Specification
|
Material
|
Model
|
Size
|
Number per volume
|
Surface area
|
Void Volume
|
Dry Packing Factor
|
|
D*H*δ mm
|
n/m3
|
m2/m3
|
%
|
m-1
|
||
|
SS304
|
Dg16
|
16×16×0.4
|
248000
|
350
|
92
|
460
|
|
Dg25
|
25×25×0.5
|
55000
|
220
|
92
|
290
|
|
|
Dg38
|
35×35×0.6
|
19000
|
150
|
93
|
430
|
|
|
Dg50
|
50×50×0.8
|
7000
|
68
|
95
|
130
|
|
|
Dg76
|
76×76×1.0
|
1830
|
68
|
95
|
80
|
Package
Classification&Features

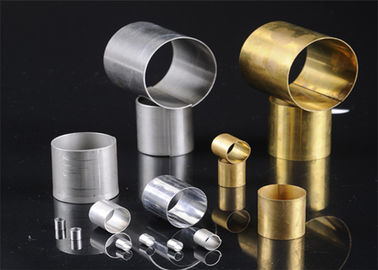

Metal Raschig Ring Packing
Features: The packing flux, pressure drop, high strength, low cost, packing inside fluid distribution performance.
Applications: Crude oil vacuum distillation, vacuum distillation, olefins separation, isomers separation, extraction and distillation.

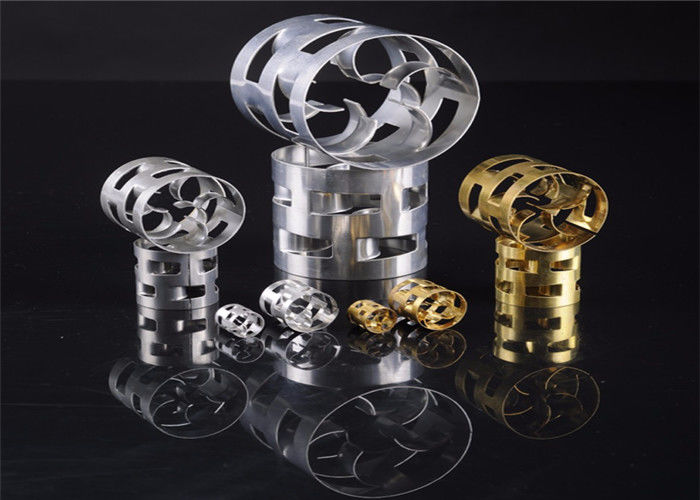

Metal Pall Ring Packing
Features; Pall Ring packing have lower pressure drop, high flux, high efficiency, liquid distribution and so on.
Applications: Suitable for all kinds of separation, absorption, desorption unit, atmospheric and vacuum devices, synthetic amine decarburization, desulfurization system.
