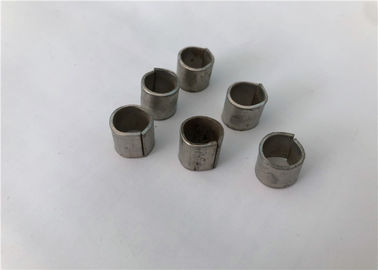

Industrial AISI304 Metal Random Packing Cup Shape High Separation Efficiency

Industrial AISI304 Metal Random Packing Cup Shape High Separation Efficiency
Industrial AISI304 Metal Random Packing Cup Shape High Separation Efficiency Industrial AISI304 Metal Random Packing Cup Shape High Separation Efficiency

Large Image :  Industrial AISI304 Metal Random Packing Cup Shape High Separation Efficiency

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-05
Payment & Shipping Terms:
Minimum Order Quantity: 2 Cubic Meter
Price: Negotiable
Packaging Details: Jumbo bag, carton box, wooden case, or customized
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Package: Jumbo Bag, Carton Box, Wooden Case, Or Customized Certificate: ISO 2008
Application: Industry, Adsorption, Scrubbing, Stripping Product Name: Stainless Steel Metal Raschig Ring
MOQ: 1 Cubic Metre Shape: Cup
High Light:

random packing column

,

random packing distillation column

Stainless Steel 316 Metal Random Packing Metal Rasching Ring Tower Packing





Product Description



Metal rasching ring is made of materi als like carbon steel, stainless steel or Aluminum alloy, etc.

The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems,so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.



Specification



Size
mm
Bulk density
kg/m3
Number
per m3
Surface area
m2/m3
Free volume
%
15×15×0.3 379 230000 350 95
25×25×0.4 318 51000 216 96
25×25×0.5 400 51000 220 95
35×35×0.8 430 19000 150 93
50×50×0.5 203 6500 106 97.4
50×50×0.7 285 6500 108 96.4
50×50×0.8 325 7000 109 95
76×76×0.8 212 1830 69 97.3
80×80×1.2 300 1600 65 96
90×90×1.0 236 1160 62 97



The above data is reference to material stainless steel (AISI304) in the material thickness shown.



Classification&Features



Metal Raschig Ring Packing

Features: The packing flux, pressure drop, high strength, low cost, packing inside fluid distribution performance.

Applications: Crude oil vacuum distillation, vacuum distillation, olefins separation, isomers separation, extraction and distillation.



Metal Pall Ring Packing

Features; Pall Ring packing have lower pressure drop, high flux, high efficiency, liquid distribution and so on.

Applications: Suitable for all kinds of separation, absorption, desorption unit, atmospheric and vacuum devices, synthetic amine decarburization, desulfurization system.



Application



It is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.





Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
