| Port: | XinGang Of Tianjin | Package: | Jumbo Bag, Carton Box, Wooden Case, Or Customized |
|---|---|---|---|
| Material: | Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. | Size: | 16mm,25mm,38mm,50mm, 76mm,or Customized |
| Certificate: | ISO9001:2008 | Usage: | Absorption Tower |
| Sample: | Provide | Service: | OEM Manufacturing |
| Highlight: | random packing column,random packing distillation column |
||

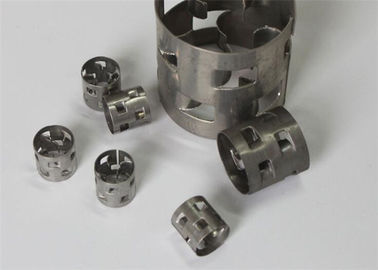

SS Metal Random Packings Metal Pall Tower Packing 38mm For Desorption Device
Product Description
Metal pall ring is an advanced improvement of rasching ring, the walls of pall ring is open, height and diameter are the same and it has 4 diametrical ribs towards the inside of each “floor”. Its structure improve distribution of gas-liquid and its efficiency can be improved above 50% and only has half of pressure drop compared with rasching ring.
Product Parameters
|
Specification
D*H*T(mm)
|
Surface area
m2/m3
|
Void space
%
|
Numbers per/m3
|
Packing factor-1
|
|
25*25*0.5
|
219
|
95
|
53000
|
255
|
|
38*38*0.6
|
146
|
95
|
15180
|
165
|
|
50*50*1.0
|
96109
|
89
|
7000
|
124
|
|
76*76*1.2
|
71
|
96
|
1830
|
80
|
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.
Feature
lower pressure drop
high flux
high efficiency
liquid distribution
Product Application
Wet scrubbers for gas absorption
Mist eliminators for liquid particle removal
Gas absorption columns
Gas strippers
Air washers
