Industrial Carbon Steel Metal Random Packing Customized Size Corrosion Resistance

Industrial Carbon Steel Metal Random Packing Customized Size Corrosion Resistance
Industrial Carbon Steel Metal Random Packing Customized Size Corrosion Resistance Industrial Carbon Steel Metal Random Packing Customized Size Corrosion Resistance

Large Image :  Industrial Carbon Steel Metal Random Packing Customized Size Corrosion Resistance

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-15
Payment & Shipping Terms:
Minimum Order Quantity: 10 Cubic Meter
Price: Negotiable
Packaging Details: customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Application: Industry, Adsorption, Scrubbing, Stripping Package: Jumbo Bag, Carton Box, Wooden Case, Or Customized
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Certificate: ISO9001:2008 Usage: Absorption Tower
High Light:

random packing column

,

random packing distillation column

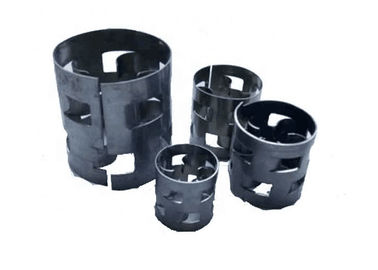

Carbon Steel Random Packing Metal Pall Ring Packing For Gas Absorption Columns





Product Description

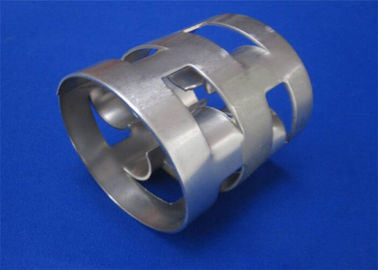

Metal pall ring is one of the most common and well known packing, Metal Pall Ring is an industry standard design media developed from the Raschig Rings and is used widely in all variety of applications. By minimizing the number of contours and crevices that can cause liquid hold-up and potential entrainment, the Metal pall ring geometry enables high gas and liquid transfer rates. The opened cylinder walls and inward bent protrusions of the Metal pall Ring allow greater capacity and lower pressure drop than standard cylindrical rings. This open ring design also maintains an even distribution and resists wall-channeling tendencies. The interior and exterior contacting surfaces of the Metal pall ring provide for an effective distribution of liquids and gasses and resist plugging, fouling and nesting. Pall rings are available in a wide range of materials.



Metal pall ring is made of a metal thin sheet and have a special structure, there are two row window with ligules towards inside on the ring wall,each row window has five ligules bend to inside of the ring and point to the center, at which the liqules touch each other, the position of up and down window is stagger,usually the area of window is about 35% of the whole ring area. The window on the ring wall let distribution and mass transfer efficiency of liquid and gas inside packing betthr than Raschig Ring.


Specification



Sizes (mm) Bulk density (kg/m3) Number (per m3) Surface area (m2/m3) Free volume (%)
16*16*0.3 360 201000 346 95.5
25*25*0.4 302 51000 212 96.2
25*25*0.5 400 51000 216 95
38*38*0.5 262 15180 145 96.7
38*38*0.6 328 15000 146 95.9
50*50*0.5 194 6500 106 97.5
76*76*0.8 205 1830 69 97.4
90*90*1.0 229 1160 62 97.1



The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.



Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.



Product Application



Suitable for all kinds of separation, absorption, desorption unit, atmospheric and vacuum devices, synthetic amine decarburization, desulfurization system.



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
