AISI304 Metal Random Packing Low Pressure Drop For Distillation Tower 50mm

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

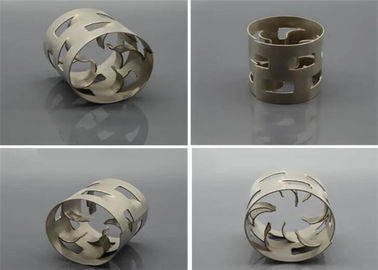

AISI304 Metal Random Packing Low Pressure Drop For Distillation Tower 50mm

AISI304 Metal Random Packing Low Pressure Drop For Distillation Tower 50mm
AISI304 Metal Random Packing Low Pressure Drop For Distillation Tower 50mm AISI304 Metal Random Packing Low Pressure Drop For Distillation Tower 50mm

Large Image :  AISI304 Metal Random Packing Low Pressure Drop For Distillation Tower 50mm

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-15
Payment & Shipping Terms:
Minimum Order Quantity: 5 Cubic Meter
Price: Negotiable
Packaging Details: customized
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 10000 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Port: XinGang Of Tianjin Package: Jumbo Bag, Carton Box, Wooden Case, Or Customized
Material: Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc. Size: 16mm,25mm,38mm,50mm, 76mm,or Customized
Certificate: ISO9001:2008 Usage: Absorption Tower
Sample: Provide Lead Time: Shipped In 7 Days After Payment
High Light:

random packing column

,

pall ring packing

Stainless Steel 316 Metal Random Packing Pall Ring Of Distillation Tower 50mm





Product Description



Metal Pall Ring is one popular type of column random packing. Compared with Raschig Ring with the same material, it has high flux, high efficiency and low pressure drop. Also Metal Pall Rings has less resistance, higher flux, higher efficiency, better packing strength and rigidity. Metal Pall Ring is the most widely used random packing nowadays.


Specification



Material
Dia.
mm
D*H*THX
(mm)
Bulk Qty.
m-3
Bulk Density
kg/m3
Specific Area
m2/m3
Void
m3/m3
F Factor
m-1
Remarks
Metal
76
76*76*1.2(1.5)
1830
308(384)
71(72)
0.961
(0.951)
80
(84)
Material: CS,SS,Cu,Al,Monel,Ni,Ti,also can upon customer requests
50
50*50*0.8(1.0)
7000
338(423)
109(110)
0.960
(0.950)
124
(128)
38
38*38*0.6(0.8)
15180
318(424)
146(149)
0.959
(0.946)
165
(176)
25
25*25*0.5(0.6)
53000
393(471)
219(223)
0.950
(0.940)
255
(268)
16
16*16*0.3(0.4)
214000
396(527)
362(371)
0.949
(0.933)
423
(457)



The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.



Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.



Advantage



Low pressure drop, which leads to reduce energy consumption largely;

Large flexibility, and scale effect is not obvious;

High capacity, small specific gravity, high mass transfer efficiency and so on;

Customized for each type of packing and requirement;


Packing & Shipping

Package Type Delivery time

Quality

Insurance

Payment Terms
Ton bag Within 7-14 days Chinese National Standard; Offer quality assurance as request. T/T, L/C, Paypal, West Union
Paper box
Wooden box



Product Application



It is suitable for various separation, absorption and desorption devices, atmospheric and vacuum equipment, synthetic ammonia decarburization, desulfurization system, ethyl stupid separation, isooctane / clumsy separation and so on.



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
