Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll

Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll
Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll

Large Image :  Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-PFW
Payment & Shipping Terms:
Minimum Order Quantity: 10Sets
Price: Negotiable
Packaging Details: Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Supply Ability: 5000Sets Per Month
Detailed Product Description
Material: Pre Hot-dipped Galvanized Tube Frame Material: Metal
Frame Finishing: Powder Coated Service: 10 Years Of Export Experience, More
Sample: Free Of Charge Main Market: The USA,Candada,Australia
Highlight:

metal palisade fence

,

palisade security fence

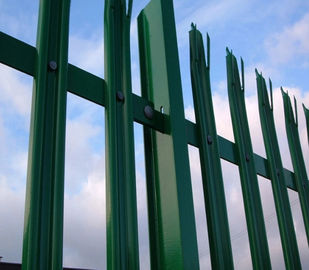

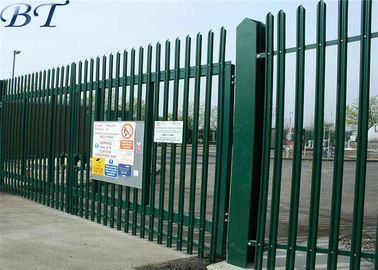

1. What is Steel palisade fencing



* Steel palisade fencing provides maximum protection against vandals and intruders.

* Cold rolled steel pales are attached to horizontal steel rails, which in turn are attached to vertical steel RSJ's, which are concreted or secured with plates or brackets.

* This amounts to a virtually impenetratable steel barrier that is available in heights of up-to 3.2 metres. Palisade fencing is a good choice when considering security, versitility, low maintenance, and value for money.



2. Steel Palisade Fence Specification



1. Type Standard Configuration
Panel Height Pales O/C Spacing Rails
8 13 ga. 5-15/16" 2" TS x 14 ga.
10 13 ga. 5-15/16" 2" TS x 14 ga.
12 13 ga. 5-15/16" 2" TS x 14 ga.
2. Type Standard Configuration

Post



Optionally available with base plates for bolt-down or cranked over walls. Also available with bracket extensions for barbed wire or razor wire.

Size: 100 x 55mm/100 x 44mm

Rails



Steel angle rails punched for pale attachment. Connected with 12mm square cup bolts and anti-vandal permacone (snap-off) nuts.

Size: 40mm x 40mm/ 45mm x 45mm/ 50mm x 50mm

Pale tops



Split-tripple point or single point for high security.

Rounded or rounded and notched for ety.



Fittings



Rails and pales are fitted using 'rivets & collars' or rounded bolts with permacone nuts (snap-off / anti-vandal).

Link Plates



Link plates, AKA 'Fish Plates' fit through the holes is the steel fencing posts and join the rails together.





3.Steel palisade fencing Finishes

Available as 'Hot Dipped Galvanised' or 'Galvanised & Polyester Powder Coated to any colour'.





Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll 0

Powder Coated Metal Palisade Fencing , Decorative Garden Fence Steel Panel Roll 1
