Product Details:
Payment & Shipping Terms:
|
Type: | Fencing, Trellis & Gates | Place Of Origin: | Hebei, China (Mainland) |
---|---|---|---|
MATERIAL: | Pre Hot-dipped Galvanized Tube | FRAME MATERIAL: | Metal |
MAIN MARKET: | The USA,Candada,Australia | Surface: | Hot Dipped Galvanized&Powder Coating |
Highlight: | steel palisade fence panels,palisade security fence |

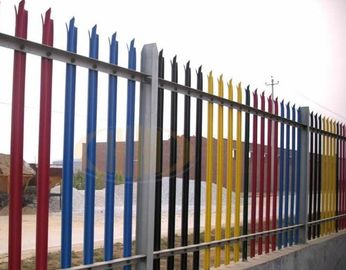

Wrought Iron Fence Panel Hot Sale/ Euro Style Free Standing Metal Palisade Fence
Wrought iron fence / steel fence description:
Fence Panel Height: 1m-5m
Fence Width:2m-3m
W Pale Height: 1.0m-5.0m
W Pale Width: 62mm, 72mm
W Thickness: 1.5mm-4.0mm
Top Point: Three Triple Point, Single Point,Round Point ETC.
Material: Hot and Cold Steel Roll Belt
Finished: Electric Galvanized, Hot Dipped Galvanized, Polyester Painting.
Polyester Painting Color: Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black)
Angle Rail: 50mmX50mmXThickness:4mm-6mmXWidth:2.0m-2.75m
Post: I Beam Post: 100mmX55mmXHeight:1.5m-6m,150mmX75mmXHeight:3m-6m
Square Post:70mmX70mmX3mm,80mmX80mmX3mm
Material: I Beam or Square Steel Pipe
Finished: Electric Galvanized,Hot Dipped Galvanized, Polyester Painting
Hot Dipped Galvanized: 600gram/Square meter(85micron),meet ISO EN 1461
Polyester Painting Color: Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black)
Fish Plate: On request Or Welded onto Post
Single Arm Or Double Arm: On Request
Tension Wire Or Barbed Wire: On Request
Concertina Razor Wire: On Request
Tension Wire: On Request
Tie Wire: On Request
Bolts & Nuts: According to Need M8X30mm and M12X30mm,
Materials: | Q235 | Color: | Black And Grey Or Other |
---|---|---|---|
Dimensions: | 1800mm X 2400mm ,2100mm X 2400mm Or Customized | Salt Spray Testing: | Pass |
Treatment: | Powder Coated ,Hot Dipped Galvanized | Technical: | Punch Pipes And Welding Etc |
Nick Name: | Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental Steel Fence | Upright Pipes: | 25mm X 25mm X 1.20mm |
Rails: | 40mm X 40mm X 1.60mm | Post: | 65mm X 65mm X 2.00mm X 3000mm |
Popular: | Powder Coated Stain Black | Apllication: | Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence |
Rails
Rails are available in four sizes, 40 x 40, 45 x 45, 50 x 50 and 65 x 50. The size of the rail is dependant on the height of fence and level of security required.
General Industrial Security
‘W’ profile 2.0mm 2.5mm 3.0mm
‘D’ profile
Gates
Gates are also available in the form of singular pedestrian gates OR double vehicle gates all as per the above spec. These gates are manufactured to look in keep as the rest of the palisade fencing system and are very reasonable as well as highly durable. All gates again are available in a RAL colour as specified.
