Product Details:
Payment & Shipping Terms:
|
| Frame Material: | Metal | Metal Type: | Iron |
|---|---|---|---|
| Frame Finishing: | PVC Coated After Galvanized | Feature: | Easily Assembled, Eco Friendly, Waterproof,Corrosion Resistant |
| High Light: | heavy gauge wire fence,welded wire fence panels |
||
Product Description

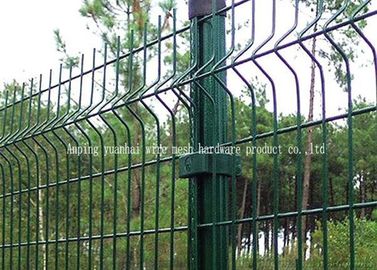

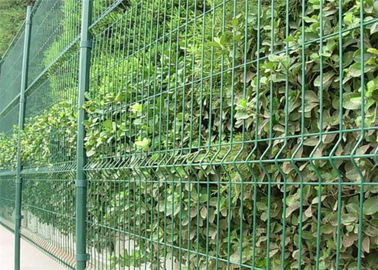

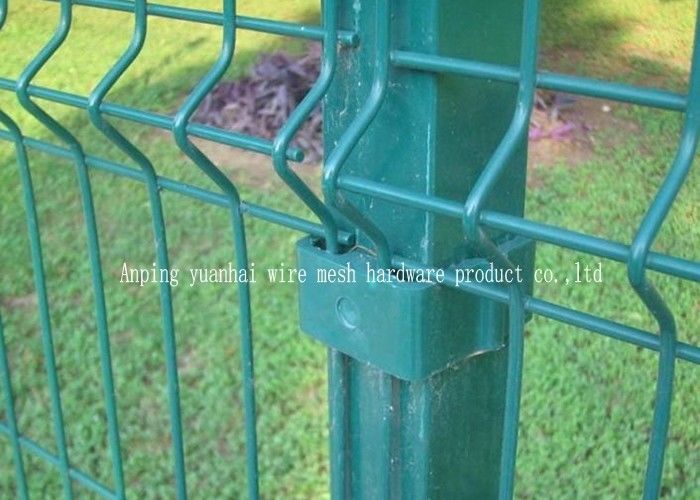

Welded fence made by welded wire mesh and galvanized pipe.Our fencing systems can quickly and easily be installed,our professional design will help you find the best fence solution!
Advantage:
They are different from woven wire mesh fences. Due to the line welding processing, it has more firm structure and longer service life compared with woven wire fences. Hot dipped zinc coated welded wire fence offers thicker zinc plating than electro galvanized one and stronger zincplating adhesion, while costs a little higher. PVC coated welded wire fence has more colors available than galvanized welded fences.
Specifications:
| Fence Height | Panel Width | Wire Diameter | Mesh size(mm) | Folds No. | Post style | Post size(mm) | Post Length(cm) |
| 103cm | 200cm 225cm 250cm |
3.5mm 4.0mm 4.5mm 5.0mm 6.0mm 8.0mm |
50x50 50x100 50x150 50x200 60x120 |
2 | Square post 1 | 40x60x1.5 | 150 |
| 123cm | 2 | 40x60x1.8 | 170 | ||||
| 150cm | 2/3 | 40x60x2 | 197 | ||||
| 153cm | 2/3 | Square post 2 | 60x60x1.5 | 200 | |||
| 170cm | 3 | 60x60x1.8 | 217 | ||||
| 173cm | 3 | 60x60x2 | 220 | ||||
| 180cm | 3 | 60x60x2.5 | 227 | ||||
| 193cm | 3 | Peach post | 50x70 | 240 | |||
| 200cm | 3/4 | 70x100 | 250 | ||||
| 203cm | 3/4 | Holland post | 48x1.5 | 250 | |||
| 240cm | 4 | 290 |
Feature:
