Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Application: | Floor |
|---|---|---|---|
| Color: | Black / White | Thickness: | 0.3-0.8mm |
| Shape: | Square / Rectangular | Surface Treatment: | Hot Dipped Galvanized |
| Usage: | Roof Drainage System | ||
| Highlight: | steel stair treads grating,steel walkway grating |
||

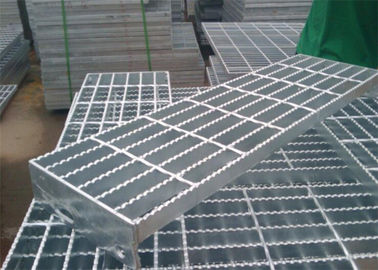

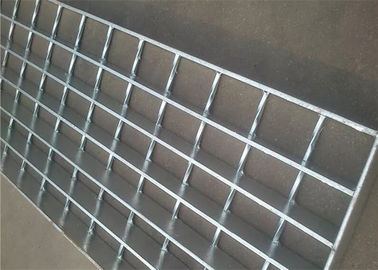

Galvanized Steel Grating Panels / Black Carbon Steel Grating
Galvanized Steel Grating Panels
steel grates and drains;
Paint steel grates and drains ;
steel grates and drains plate
Paint steel grates and drains,Can be used widely in every kind of industry ,civil building such as parking lots, highway, railroad, industry project.
Our products variety is complete ,the technical force is abundant, we also can design according to the customer's requirement.
1. Steel grating standards:
A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
2. Bearing bar specification:20*3 to 100*6
3. Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended
4. Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.
5. The Maximun length of black panel is 7350mm.
6. Materials: mild steel or stainless steel.
7. Surface treatment: untreated, painting or hot dip galvanizing.
8. Steel grating with America standard can also be fabricated.
| Type | Welded steel grating, Galvanized steel grating |
| Steel flat size | 20×3~45×5mm |
| Beraing bar pitch | 12.5,15,20,25,30,35,40,50mm |
| Cross bar pitch | 38,50,80,100mm |
| material | Low carbon steel, stainless steel, aluminium |
| Surface treatment | Untreated, hot galvanized, painted |
| Application |
flooring steel gratings, stair treads, sun shades, drain covers, security screen manhole covers, mezzanine flooring, earth mats, shelving, Stanchions (hand rails) trench covers |
| Standards |
China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS 1657-1985 |
