| Material: | Steel | Application: | Floor |
|---|---|---|---|
| Color: | Black / White | Thickness: | 0.3-0.8mm |
| Shape: | Square / Rectangular | Surface Treatment: | Hot Dipped Galvanized |
| Usage: | Roof Drainage System | ||
| Highlight: | galvanized metal grating,steel walkway grating |
||

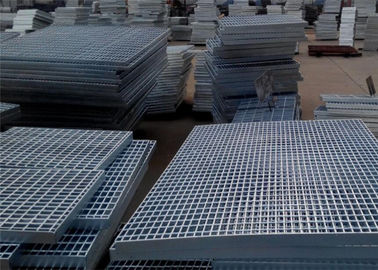

Tread Stair / Heavy Welded Metal Steel Grating / Steel Grating Panels
1. Steel grating standards:
A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
2. Bearing bar specification:20*3 to 100*6
3. Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended
4. Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.
5. The Maximun length of black panel is 7350mm.
6. Materials: mild steel or stainless steel.
7. Surface treatment: untreated, painting or hot dip galvanizing.
8. Steel grating with America standard can also be fabricated.
9. Steel grating advantage:
Light weight, great load-bearing capacity, non-slip and e, easy installation, material-economic, sturdy and durable, ventilated, easy to clean and attractive appearance.
10. Specifications of steel grating:
| Item | Description |
| Bearing bar |
20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing bar pitch |
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| Cross bar pitch | 40, 50, 60, 65,76,100,101.6,120,130mm or as customers’ requirement. |
| Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| Materials | Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A),Stainless steel,aluminum alloy,etc |
| Galvanizing standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Steel grating standards | A. China: YB/T4001-1998 |
| B. USA: ANSI/NAAMM (MBG 531-88) | |
| C. UK: BS4592-1987 | |
| D. Australia: AS1657-1988 | |
| E. Japan: JJS | |
| Surface treatment |
Black,Electro galvanized(Cold dip galvanized),Hot dipped galvanized,Painted,Powder coated,or as customers’ requirements.And hot dipped galvanizing is generally recommended. |
