Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Application: | Floor Stairs |
|---|---|---|---|
| Color: | Black / White | Thickness: | 0.3-0.8mm |
| Shape: | Square / Rectangular | Surface Treatment: | Hot Dipped Galvanized |
| Usage: | Roof Drainage System | ||
| Highlight: | galvanized metal grating,steel walkway grating |
||

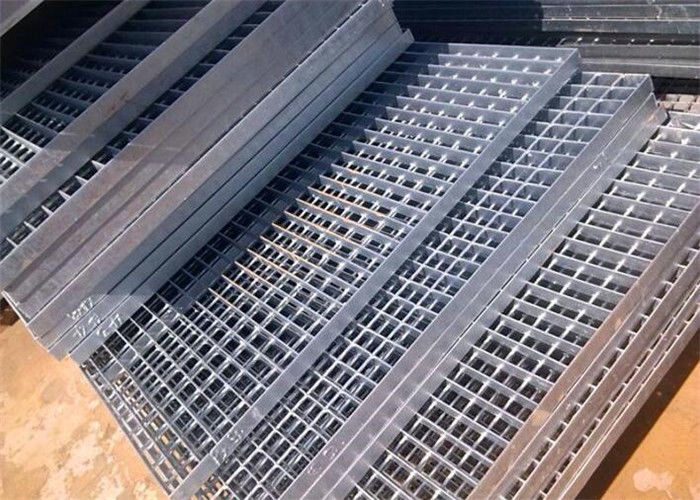

Square / Rectangular Stainless Steel Grating Panels Hot Dipped Galvanized Surface Treatment
(1)Place of Origin: Hebei, China (Mainland)
(2)Brand Name: YUANHAI
(3)Material: Steel
(4)Surface treatment: Hot dip galvanized, cold galvanized, spray paint, not processing
(5)Dimensions: 3'X20'
(6)Grating type: Serrated I bearing bar type
(7)Galvanization Standard: GB/T 13912, ISO 1461, JIS H8641,ASTM A123,,AS1650, ,BS 729
(8)Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
(9)Grating type: Bearing bar: Plain type, Plain I type, Serrated type, Serrated I type;
Cross bar: Round cross bar, Square twisted cross bar.
(10)Specifications of steel grating:
| Item | Description |
| Bearing bar |
20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing bar pitch |
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| Cross bar pitch | 40, 50, 60, 65,76,100,101.6,120,130mm or as customers’ requirement. |
| Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| Materials | Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A),Stainless steel,aluminum alloy,etc |
| Galvanizing standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Steel grating standards | A. China: YB/T4001-1998 |
| B. USA: ANSI/NAAMM (MBG 531-88) | |
| C. UK: BS4592-1987 | |
| D. Australia: AS1657-1988 | |
| E. Japan: JJS | |
| Surface treatment |
Black,Electro galvanized(Cold dip galvanized),Hot dipped galvanized,Painted,Powder coated,or as customers’ requirements.And hot dipped galvanizing is generally recommended. |
