Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Plate , Aluminium Plate,common Carbon Plate | Hole Shape: | Diamond Mesh Hole |
|---|---|---|---|
| Surface Treatment: | Galvanized, Powder Coated | LWD: | 25mm-100mm |
| SWD: | 10mm-50mm | Technique: | Perforated |
| Feature: | Corrosion Resistance | Thickness: | 0.5-8mm |
| Highlight: | expanded metal fence panels,stainless steel diamond mesh |
||
Hot Galvanized Flattened Expanded Metal Wire Mesh For Screening Or Security
Product Description
Expanded Metal is used widely throughout the transportation industry, agriculture, security, machine guards, floorings, construction, architecture and interior design. The use of this kind of expanded metal mesh is highly beneficial, and of cost saving and low maintenance.
We manufacture a full range of standard and flattened expanded metal, structural grating, micro mesh and decorative patterns. Raw material can be produced in carbon, galvanized, stainless steel or high strength alloy steel. Certain alloys of copper, brass, bronze and plastics can be expanded as well.
Classifications
1. filter expanded mesh
2. Industrial expanded metal
3. decorating metal mesh
4. mini-opening expanded mesh
5. security fence expanded metal sheets
| EXPANDED MESH | ||||
| Thickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width & Length |
| 0.5 | 2.5 | 4.5 | 0.5 |
Width: 0.5m-2.0m Length: 30m, 50m
Other sizes can be made as request |
| 0.5 | 10 | 25 | 0.5 | |
| 0.6 | 10 | 25 | 1 | |
| 0.8 | 10 | 25 | 1 | |
| 1 | 10 | 25 | 1.1 | |
| 1 | 15 | 40 | 1.5 | |
| 1.2 | 10 | 25 | 1.1 | |
| 1.2 | 15 | 40 | 1.5 | |
| 1.5 | 15 | 40 | 1.5 | |
| 1.5 | 23 | 60 | 2.6 | |
| 2 | 18 | 50 | 2.1 | |
| 2 | 22 | 60 | 2.6 | |
| 3 | 40 | 80 | 3.8 | |
| 4 | 50 | 100 | 4 | |
| 4 | 60 | 120 | 4 | |
| 4 | 80 | 180 | 4 | |
| 4 | 100 | 200 | 4 | |
| 4.5 | 50 | 100 | 5 | |
| 5 | 50 | 100 | 5 | |
| 5 | 75 | 150 | 5 | |
| 6 | 50 | 100 | 6 | |
| 8 | 50 | 100 | 8 | |

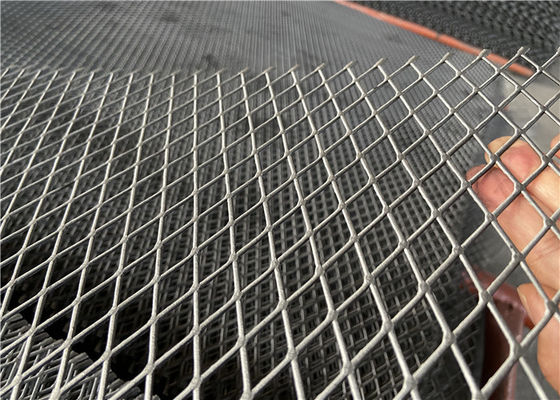

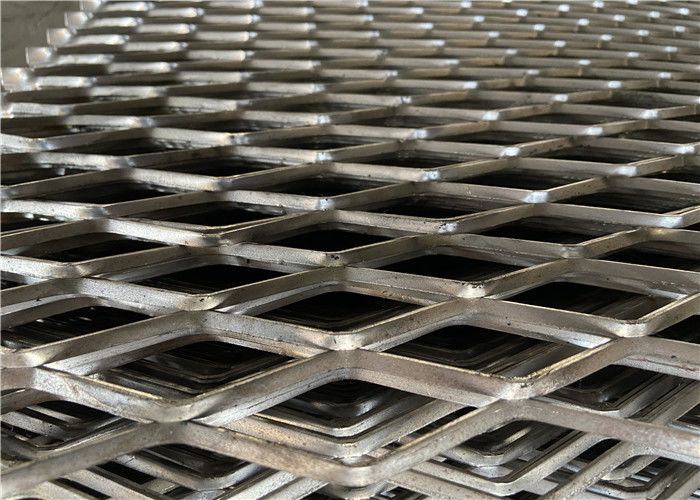

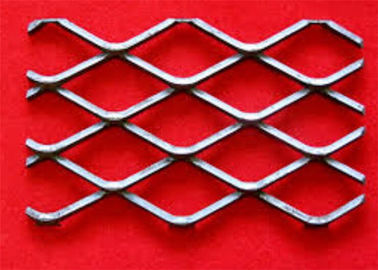

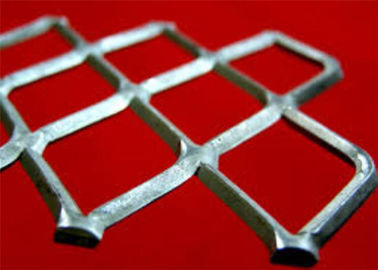

Product Show
Application
Expanded metal mesh Mainly used in building cement, mechanical equipment protection, crafts manufacturing, high grade sound box nets, expressway fence, stadium fence, road fence Garden Cart Trolley Trailer Steel Mesh etc.
