High Surface Area Orifice Corrugated Packaging , Structure Packing In Distillation

High Surface Area Orifice Corrugated Packaging , Structure Packing In Distillation
High Surface Area Orifice Corrugated Packaging , Structure Packing In Distillation High Surface Area Orifice Corrugated Packaging , Structure Packing In Distillation

Large Image :  High Surface Area Orifice Corrugated Packaging , Structure Packing In Distillation

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 10 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Keyword: Metal Wire Gauze Structured Packing
Dimensions: 125Y 250Y 350Y 500 700 Etc Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Chemical Composition: 99.95%Min Usage: Mass Transfer Media
Sample: For Free Package: Carton Box
High Light:

structured tower packing

,

stainless steel packing

Mass Transfer Metal Tower Packing Structured Column Packing For Petrochemical ​



Product Description



Structured packing is a range of materials that are specially designed for use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column. The design is intended to ultimately produce a large surface area for contact between different phases.

Structured packing is made from a variety of materials including corrugated sheets of perforated embossed metal, plastic, or wire gauze. The resulting product is an open honeycomb with inclined flow channels producing a high surface area coupled with a low gas flow resistance. Enhancements are often chosen to maximize liquid spreading which are ideal for applications with low pressure and irrigation rates.



 Product Specification



Model Wire Gauze Structured Packing
Material SS 304, 304L, 410, 316, 316L, etc.
Model Specific surface Bulk density Void ratio Obl. ΔP Theo. plate HETP/mm F factor m/s (kg/m3)0.5
(m2/m3) (kg/m3) (%) angle (Pa/plate) (piece/m)
250AX 250 125 95 30 100-400 2.5~3 100 2.5-3.5
500BX 500 250 90 30 400 4~5 200 2.0-2.4
700CY 700 350 85 45 600-700 8~10 333-400 1.5-2.0

Typical Application Absorption, scrubbing and stripping services

Package : Carton box; wooden box
Warranty: a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
b) Offer lifetime consultation on problems occurred



Product Features

  • Low pressure drops
  • Higher capacities
  • Higher efficiencies
  • Reduced liquid hold up
  • Lower energy consumption

 Product Application



This series packing widely used in distillation, absorption, regeneration, heat trasfer, stripping, flash evaporation, mist collecting,

Isomer Separation, Flavours Factory, Fine Chemical,Testing Tower and improvement of tower etc.



Packing

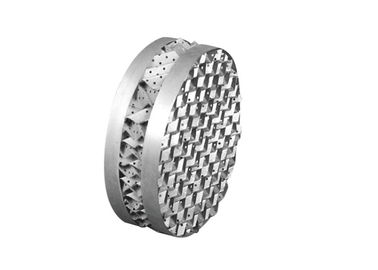

High Surface Area Orifice Corrugated Packaging , Structure Packing In Distillation 0

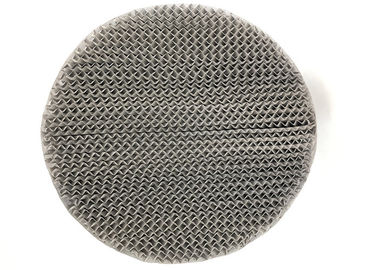

High Surface Area Orifice Corrugated Packaging , Structure Packing In Distillation 1



Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
