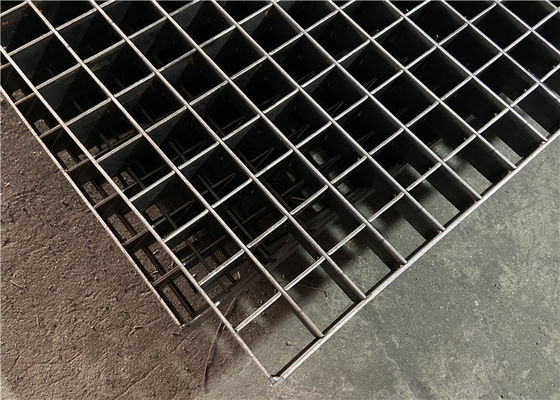

Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover

Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover
Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover

Large Image :  Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G1
Payment & Shipping Terms:
Minimum Order Quantity: 100Square Meters
Price: Negotiable
Packaging Details: 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Supply Ability: 1000000Square Meters Per Month
Detailed Product Description
Material: Galvanized/Q235/stainless Steel Thickness: 0.3-0.8mm
Shape: Square / Rectangular Surface Treatment: Hot Dipped Galvanized
Type: Plain/serrated/I Type Steel Grating Usage: Plain ,serrated ,I Type Steel Grating
High Light:

galvanized metal grating

,

steel walkway grating



Steel Walkway Grating Easy Installation For Roof Drainage System Drain Cover





Steel Walkway Grating Description



A grating is any regularly spaced collection of essentially identical, parallel, elongated elements. Gratings usually consist of a single set of elongated elements, but can consist of two sets, in which case the second set is usually perpendicular to the first (as illustrated).When the two sets are perpendicular, this is also known as a grid or a mesh.



Materials: mild steel or stainless steel.

Surface treatment: untreated, painting or hot dip galvanizing.

Bearing bar specification:20*3 to 100*6

Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended

Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.

The Maximun length of black panel is 7350mm.



Stainless Steel grating standards


A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.



Steel Walkway Grating Specifications



Specifications of steel gratings
Item Description
Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement.
Surface treatment Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
Flat bar type Plain, Serrated (tooth-like), I bar (I section)
Material standard Low carbon steel (CN: Q235, US: A36, UK: 43A)
Galvanization standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Steel grating standards A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JJS





Application of Steel Walkway Grating



Weld forged Steel Grating can be widely used in various industrial buildings, such as metallurgy, building materials, power stations, boilers, ship building, , municipal construction, etc.



Steel grating advantage



Light weight,great load-bearing capacity,non-slip and safe,easy installation,material-economic,sturdy and durable,

ventilated,easy to clean and attractive appearance.

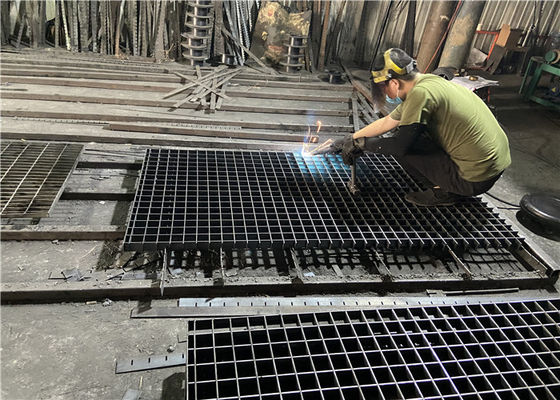

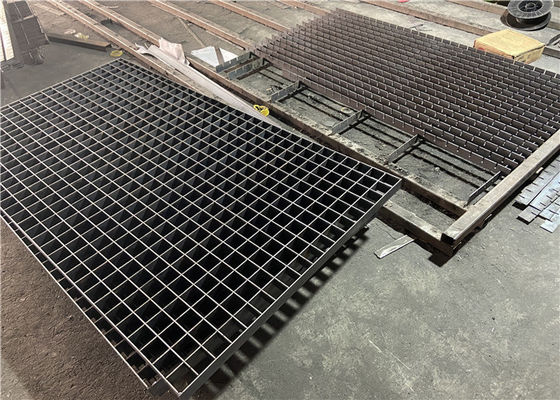

Steel Walkway Grating Workshop



Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover 0



Easy Installation Steel Walkway Grating For Roof Drainage System Drain Cover 1
