Hot Dip Galvanized 30/5 30mm x 100mm Steel Walkway Grating For Platform
Hot Dip Galvanized Steel Grating Description
Steel Grating made by welding with flat steel and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
Hot Dip Galvanized Steel Grating Description
1) Raw material :Low carbon steel, stainless steel, aluminum alloy
2) Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3) Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers’ requirement.
Stainless Steel grating standards
Hot Dip Galvanized Steel Grating Specifications
| Item |
Specifications |
|
Bearing
Bar specing
|
25x3,25x4,30x3,30x4,30x5,30x10,40x5,50x5,..75x10mm |
| Bear bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| Cross bars |
38,50,76,100,101.6mm |
| Material |
Q235,A36,SS304 |
| Surface treatment |
Black, hot dipped galvanizing, paint |
| Standard |
China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) |
| UK: BS4592-1987 |
| Australia: AS1657-1985 |
Application of Hot Dip Galvanized Steel Grating
Weld forged Steel Grating can be widely used in various industrial buildings, such as metallurgy, building materials, power stations, boilers, ship building, , municipal construction, etc.
Hot Dip Galvanized Steel Grating Advantage
Light weight,great load-bearing capacity,non-slip and e,easy installation,material-economic,sturdy and durable,
ventilated,easy to clean and attractive appearance.

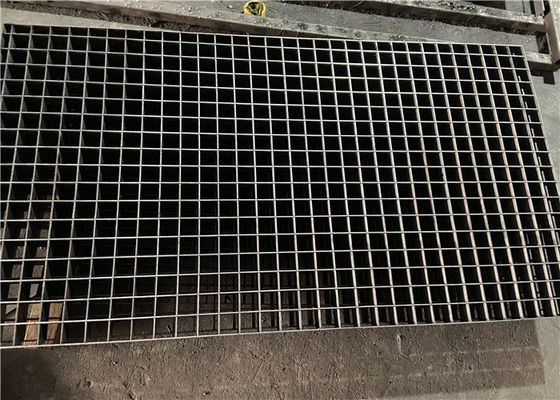

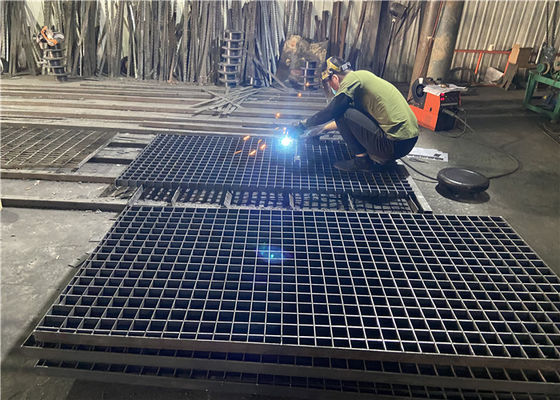

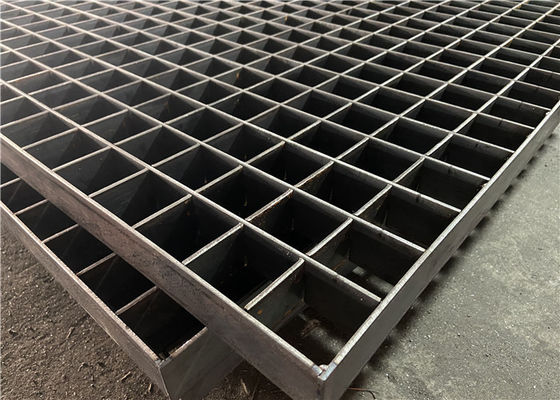

Hot Dip Galvanized Steel Grating Show
