Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate

Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate
Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate

Large Image :  Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G1
Payment & Shipping Terms:
Minimum Order Quantity: 50 Square Meters
Price: Negotiable
Packaging Details: 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Supply Ability: 1000000Square Meters Per Month
Detailed Product Description
Material: Low Carbon Steel / Stainless Steel Surface Treatment: Hot Dipped Galvanized
Type: Plain/serrated Application: Drain Cover / Platform / Trench Cover
Certificate: ISO9001:2015 Brand Name: Yuanhai
Highlight:

galvanized metal grating

,

steel walkway grating



Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate





Steel Walkway Grating Description



1) material:carbon steel or stainless steel



2) cross bar pitches:maybe 24-200mm,of which 50mm,76mm and 100mm are recommended.



3) Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.



4) Surface process of gratings: there are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.



5) Packing conditions of steel grating:normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.



Steel Walkway Grating Specification



Product Name
Galvanized Steel Grating Drain/ Walkway/Pool Grates
Material
Q235-345B or as per customer required

Bearing bar
25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
Bear bar pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
Cross bar pitch
38,50,76,100,101.6mm
Sample
All of our steel products are with good quality. We supply free sample and believe that quality can satisfy you!
Port
Xingang Port, Tianjin, China
Payment
T/T,30% deposits; 70% balance before delivery. or L/C



The Shape of Bearing Bar



Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate 0



Steel Walkway Grating  Application

  1. Industrial Flooring
  2. Catwalks
  3. Pedestrian Stair treads
  4. Bridge Decking
  5. Sanitation Dumps
  6. Roadway H20 Loading
  7. Residential Decks

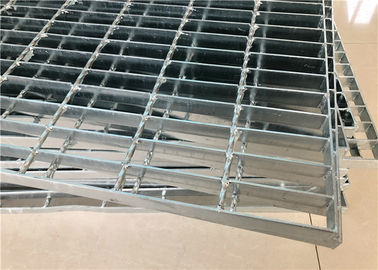

Steel Walkway Grating Show



Twisted Bar Steel Walkway Grating Heavy Duty Galvanized Trench Steel Grate 1
