Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 302,304,316,304L,316L,321 | Type: | Plain,twill Or Dutch Weave |
|---|---|---|---|
| Usage: | Petro, Chemical, Air,liquid Filter | Wire Diameter: | 0.02-2mm |
| Mesh Count: | 10-500 Mesh | Feature: | Corrosion Resistance |
| Highlight: | 400X2800 Stainless Steel Wire Mesh Filter,2mm stainless steel mesh cloth |
||
304 304L 316 316L 2-635 Screen Stainless Steel Wire Mesh Filter
Product Description
Stainless Steel Mesh For Filter Cloth
Material: SS 302,SS 304,SS 316 ,SS 304L, SS 3016L ect
Wire dia: 0.017mm-5mm
Weave Type:
Plain weave can be woven from 1X1mesh to 635X635 mesh
Plain Dutch weave can be woven from 10X64mesh to 80X700 mesh
Twill Weave can be woven from 20X250mesh to 400X2800 mesh
Product Specification
| Stainless Steel Wire Mesh | ||||||
| Mesh/inch | Wire Diameter (mm) |
Aperture (mm) |
Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
| Width of Stainless Steel Wire Mesh: 0.6m-8m | ||||||
Feature
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 30-635mesh.
Common Width:0.914m,1.0m,1.22m,1.5m,Special requirement can be customized.
Characteristics of stainless Steel Wire Mesh:
Acid-resisting,alkali-resisting and anti-corrosion
High strength,good tension toughness and abrasion performance,durable in use.
resistance to high temperature oxidation
Highly polished, no need to do any surface treatment,with convenient and simple maintenance.
Application
Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

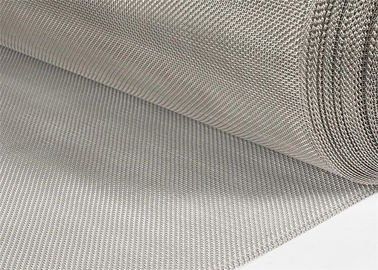

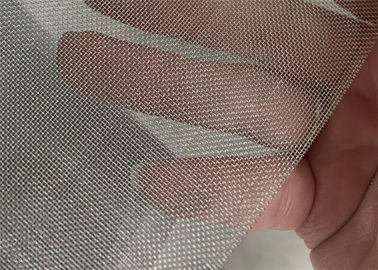

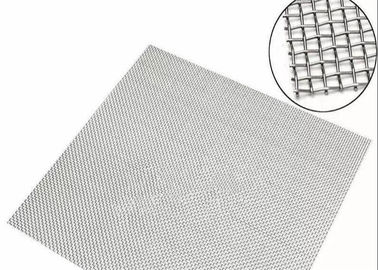

Product Show
