Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 302,304,316,304L,316L,321 | Weaving: | Plain,twill Or Dutch |
|---|---|---|---|
| Wire Diameter: | 0.02-2mm Stainless Steel Wire Mesh | Mesh Count: | 40-350 Mesh |
| Aperture: | 0.038-10.9mm | Application: | Petro, Chemical, Air,liquid Filter |
| Highlight: | 10.9mm Stainless Steel Wire Mesh Filter,8*85 Stainless Steel Wire Mesh Filter |
||
Stainless Steel 304 Wire Mesh For Petroleum Filtering Food Grade
Product Description of Stainless Steel Wire Mesh Filter
Stainless steel wire mesh filter is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing, smooth surface, no rust, corrosion resistance, non-toxic, health, environmental protection. Stainless steel mesh is mainly used in hospitals, pasta, meat barbecue, living basket, fruit basket series products, also used in some industries for filtering and screening.
Material List
| AISI | C | Si | Mn | P | s | Cr | Ni |
| 201 | ≤0.15 | 1 | 5.5-7.5 | ≤0.06 | ≤0.03 | 16-18 | ≤0.25 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18-20 | 8-9 |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18-20 | 9-10 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16-18 | 10-12 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16-18 | 12-15 |
| Stainless Steel Filter Mesh | ||
| Mesh | Wire Dia.(Inch) | Aperture(Micron) |
| 8*85 | 0.014*0.0126 | 250-255 |
| 12*64 | 0.024*0.0165 | 200-205 |
| 14*88 | 0.02*0.013 | 150-155 |
| 20*150 | 0.0098*0.007 | 100-105 |
| 24*100 | 0.015*0.01 | 80-85 |
| 30*150 | 0.009*0.007 | 65-70 |
| 40*200 | 0.007*0.0055 | 55-60 |
| 50*250 | 0.0055*0.0045 | 40-45 |
| 80*400 | 0.0049*0.0028 | 35-40 |
Weave pattern:
Plain Weave ,Twill Weave,Dutch Weave,etc.
Feature of Stainless Steel Wire Mesh Filter
Certainly the biggest benefit of woven stainless steels is the high resistance in corrosion. Low-alloy steel can resist corrosion at normal atmospheric conditions where high-alloy steels can resist severe circumstances like; low/high temperatures, high pressures, acids, alkaline solutions and so on.
Application of Stainless Steel Wire Mesh Filter

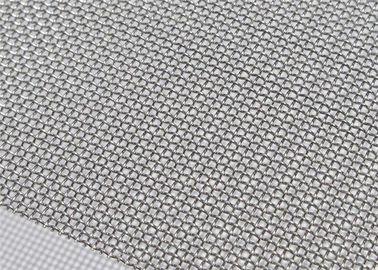

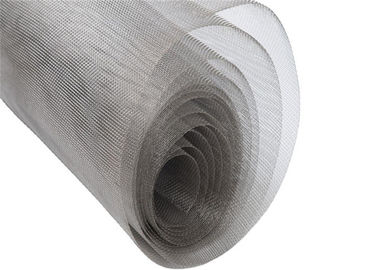

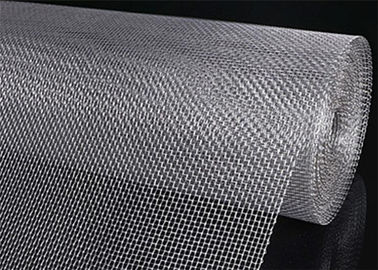

Product Show of Stainless Steel Wire Mesh Filter
