Product Details:
Payment & Shipping Terms:
|
| Material: | SS 302,304,316,304L,316L,321 | Weaving: | Plain,twill Or Dutch |
|---|---|---|---|
| Feature: | Acis Resist,Alkali Resist | MOQ: | 1 Rolls |
| Certificate: | ISO9001:2015 | Application: | Petro, Chemical, Air,liquid Filter |
| High Light: | Crimped Stainless Steel Wire Mesh Filter,Woven Stainless Steel Wire Mesh Filter |
||
304 316 316L 100 200 Micron SS Crimped Woven Wire Mesh
Product Description of Stainless Steel Wire Mesh Filter
Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
Material List
|
Mest count |
plain weave can be woven from 1- 400 mesh twill weave can be woven from 2- 635 mesh dutch wevae can be woven up to 500*3500 mesh |
| Hole shape | square hole |
| Wire diameter | 0.018-2.03mm |
| Stock size | 1*30m/roll, 1.22*30m/roll, 1.5*30m/roll or customized. |
| Customzied | Other sizes can be customzied as per your requiremnts |
| Sample | A4 size sample can be provided. |
| Quality Reports | PMI testing video & reports will be provided, to accurance 100% good quality... |
| Stainless Steel Wire Mesh | ||||||
| Mesh/inch | Wire Diameter (mm) |
Aperture (mm) |
Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
| Width of Stainless Steel Wire Mesh: 0.6m-8m | ||||||
Application of Stainless Steel Wire Mesh Filter
Perfectly suited for a wide array of architectural and functional purposes, Dongfu stainless steel wire mesh is used in various industries. The petroleum, chemical environmental protection, mining, aerospace, papermaking, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh.
Feature of the stainless steel wire mesh

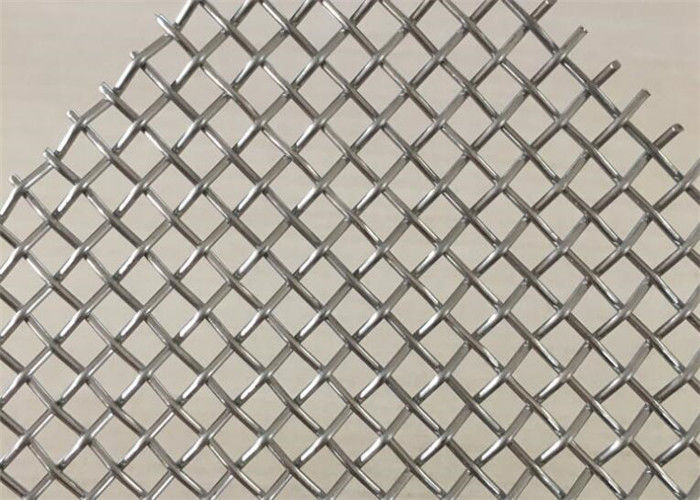

Product Show of Stainless Steel Wire Mesh Filter
