Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter

Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter
Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter

Large Image :  Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001
Model Number: YH-32
Payment & Shipping Terms:
Minimum Order Quantity: 30 Square Meters
Price: Negotiable
Packaging Details: packing in roll and plastic inside and wooden case outside or as your requirement
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 20000 Square Meter/Square Meters per Month
Detailed Product Description
Material: SS 302,304,316,304L,316L,321 Weaving: Plain,twill Or Dutch
Feature: Corrosion Resistance Shape: Square. Accept Customized
Certificate: ISO9001:2015 Usage: Sand Sieving
High Light:

100μm stainless steel filter mesh

,

5000mm stainless steel filter mesh

Micron Mesh Screen Test Sieves Wire Net For Sand Sieving




Twill Weave Stainless Steel Wire Net for Sand Sieving



Prduct name  7 8 mesh twill weave stainless steel wire net for sand sieving
Micron size 20μm-100μm
Material SS 201,202,304,304L,316,316L
Diameter size 2.6mm-5000mm
Mesh count

plain weave from 1 mesh to 400 mesh

twill weave from 1 mesh to 635 mesh

dutch weave can be weaven up to 500x3500 mesh

Shape rectangle, aquare, round, oval, circular, cap, waist and abnormity
Technique woven
Advantage

High filtering rate

corrosion & alkai & acid resistance

Applications

Filtering oil

Gas liquid separation

Uniform gas,well-distributed, diffuse gas or oil or heat

Filtration for high temperature environment

High pressure reverse wash filtering

Acid and alkali corrosion environment filtering





Stainless Steel Wire Mesh Filter Description



We produce stainless steel wire mesh from first class stainless steel material in SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.

Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, extensively used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

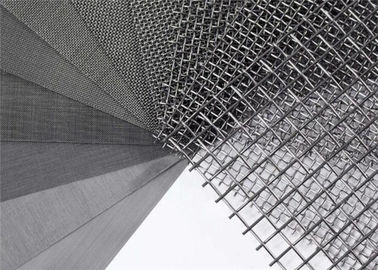

Weave Style



1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.





Screen Test Sieves Sand Sieving 100μM Stainless Steel Wire Mesh Filter 0

Stainless Steel Wire Mesh Filter Application

  • In acid, alkali environment conditions sieving and filtering.
  • Petroleum industry as mud mesh,.
  • Chemical fiber industry as screen mesh.
  • Plating industry as acid cleaning mesh.

the Stainless Steel Wire Mesh Feature

  • Corrosion resistance.
  • Anti-acid and alkali resistance
  • Anti-high temperture.
  • Good filter performance.
  • Long using life

The common packaging


1.30m/roll in PVC bag
2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen
