Product Details:
Payment & Shipping Terms:
|
| Material: | High Tensile Steel Wire | Wire Diameter: | 1.6mm-3.2mm |
|---|---|---|---|
| Weaving Style: | Normal Twist/Single Twist | Barbs Distance: | 7.5-15cm |
| Weight: | 10-50kg/Coil | Zinc Coating: | 40-160g/m2 |
| Highlight: | HDG Steel Barbed Wire,1.6mm reverse twist barbed wire |
||

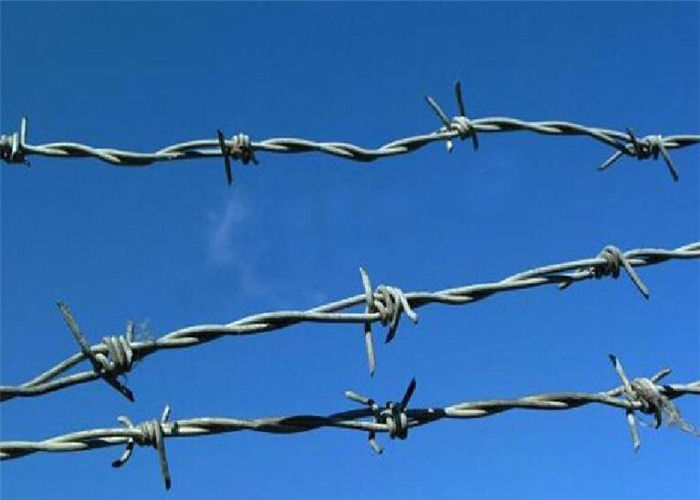

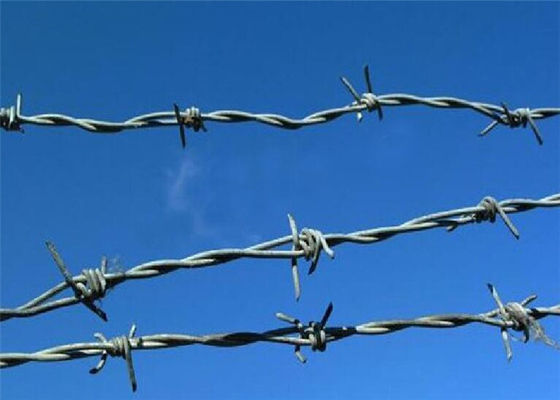

Hot Dipped Galvanized Reverse Twist Barbed Wire Border ety Protection
Product Description
Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.

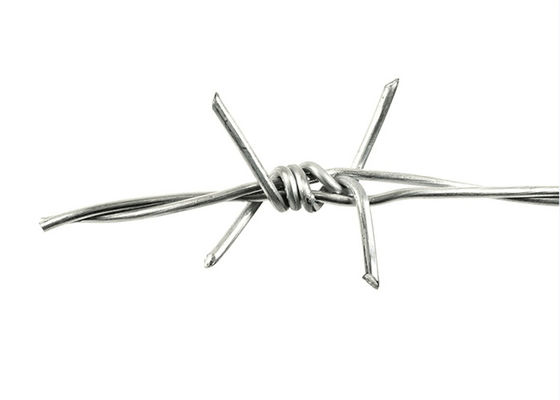

Twist Types
| Normal types: | 1-Traditional Twisted Barbed Wire |
| 2-Double Twisted Barbed Wire | |
| 3-Single Strand Barbed Wire | |
|
Wire materials: |
1-Electro galvanised steel wire |
| 2-Hot dipped galvanized steel wire | |
| 3-PVC coated steel wire. | |
| 4-Stainless steel wire |
Product Specification
|
Gauge of Strand and Barb in B.W.G. |
Approximate Length per Kilo in Meter | |||
| Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" | |
| 12 × 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2 × 12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2 × 14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13 × 13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13 × 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2 × 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14 × 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2 × 14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15 × 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2 × 15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
Features
1 . Frightening and stopping to be aggressive perimeter intruders;
2 . Prevent corrosion
3 . High resistance allows greater spacing between the fencing post
4 . Protecting the yard/farm
5 . Prevent the animals
Application

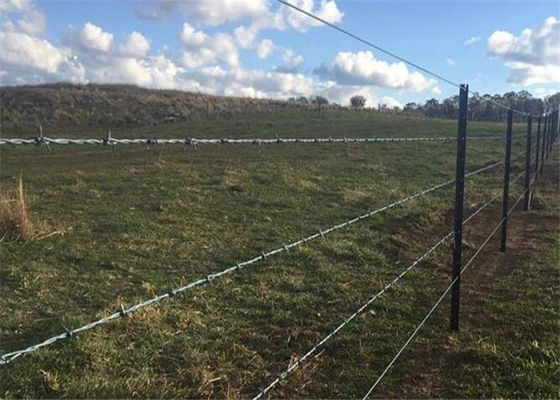

Barbed wire with strong anticorrosion performance, long service life, good defense, and other characteristics, suitable for factory, private villas, residential buildings on the ground floor, construction site, Banks, prisons, print works, military machine, bungalow.
Packing Details
1. In rolls with wodden handle ( handle with or without plastic)
2. In rolls with pallet or without pallet
3. Based on customer requirement
Delivery Details : 25 days after your deposit.
