Double Strand Traditional Twist Steel Barbed Wire Excellent Protection

Double Strand Traditional Twist Steel Barbed Wire Excellent Protection
Double Strand Traditional Twist Steel Barbed Wire Excellent Protection Double Strand Traditional Twist Steel Barbed Wire Excellent Protection

Large Image :  Double Strand Traditional Twist Steel Barbed Wire Excellent Protection

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001:2008
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Plastic inside, hessian outside;
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Ton/Tons per Month
Detailed Product Description
Material: Steel Iron Wire Surface Treatment: Electric Galvanized /hot-dip Galvanized/ PVC
Package: 25kg/Roll Zinc Coating: 50-80g/m2,180-220g/m2
Usage: Border Safety Protection Barb Distance: 10cm,12.5cm,15cm
High Light:

Traditional Twist Barbed Wire

,

double strand barbed wire

Double Strand Traditional Twist Barbed Wire Excellent Protection

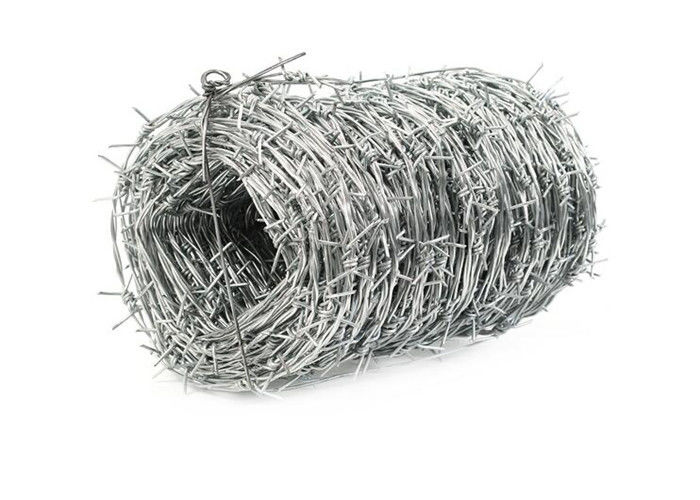

 Description of barbed wire

 Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater   spacing between the fencing posts.

 Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire   fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written   as barbed tape as it is always used in a line to form a kind of tape.



Features of Barbed Wire

  • Helps keep animals in or out of a perimeter fence
  • Used in agricultural, domestic and commercial applications
  • Galvanised high quality
  • Heavy duty mild steel or high tensile options available

 Introduction of Barbed Wire



  • Material: Carbon steel wire, stainless steel wire.
  • Surface treatment: Galvanized or PVC coated.
    Common colors of PVC are green, yellow, blue, red, white, and black.
  • Line wire: Thickness: #12,#12½,#13,#13½,#14,#14½,#15,#15½ (in B.W.G.)
    Tensile strength: 1235 N/m2.
    Galvanization: 275 g/m2.
  • Barb wire: Thickness: #12,#12½ ,#13 ,#14 ,#14½,#15,#15½ (in B.W.G.)
    Spacing: 3″/ 4″/ 5″/ 6″
    Tensile strength: 350 N/m2.
    Galvanization: 240 g/m2.

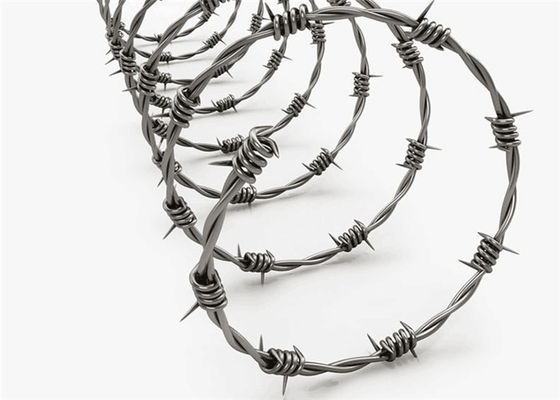

  • Strand structure: Single strand barbed wire: formed with one line wire and many barbs.
    Double strand barbed wire: formed with two line wires and many barbs.
  • Barb structure: Single barb (2-point barbed wire).
    Double barbs (4-point barbed wire).
  • Twist style: Traditional twist: barbs through two wires first, then wires are twisted.
    Reverse twist: two wires are twisted first, then barbs fastened onto wires.
  • Weight: 10-20kg/coil
  • Length: 150-400m/coil

 Specification of Barbed Wire



Type Wire Gauge (BWG)

Barb

Distance (cm)

Barb

Length (cm)

Electric galvanized barbed wire

Hot-dip galvanized barbed wire

10#*12# 7.5-15 1.5-3
12#*12#
12#*14#
14#*14#
14#*16#
16#*16#
16#*18#

PVC coated barbed wire

PE barbed wire

Before coating After coating 7.5-15 1.5-3
1.0mm-3.5mm 1.4mm-4.0mm
11BWG-20BWG 8BWG-17BWG
PVC or PE coating thickness:0.4mm-0.6mm



Package of Barbed Wire



It is always packed by 25kg/coil or 50kg/coil.
1) Packed by water proof paper.
2) Packed by woven bag.
3) Packed by carton.
4) Packed by wooden pallet.
5) We can also make the package according to your requests.



Application of Barbed Wire



Barbed wire is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of fence or in rows as an independent barrier. To prevent corrosion, barbed wire has a zinc coating. The barbed wire consists of barb wire and line wire. The wire diameter of line wire is larger. The line wire can have one wire or two wires. The barb wires are braided with a system of constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharpened spikes are protective elements of barbed wire.



Double Strand Traditional Twist Steel Barbed Wire Excellent Protection 0
