Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Plate / Carbon Plate | Technic: | Perforated |
|---|---|---|---|
| Surface Treatment: | Galvanized, Powder Coated | LWD: | 25mm-100mm |
| SWD: | 10mm-50mm | Certification: | ISO9001:2015 |
| Highlight: | perforated expanded wire mesh,25mm Expanded Metal Wire Mesh |
||

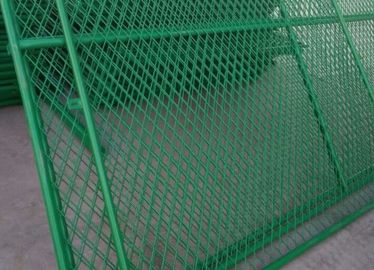

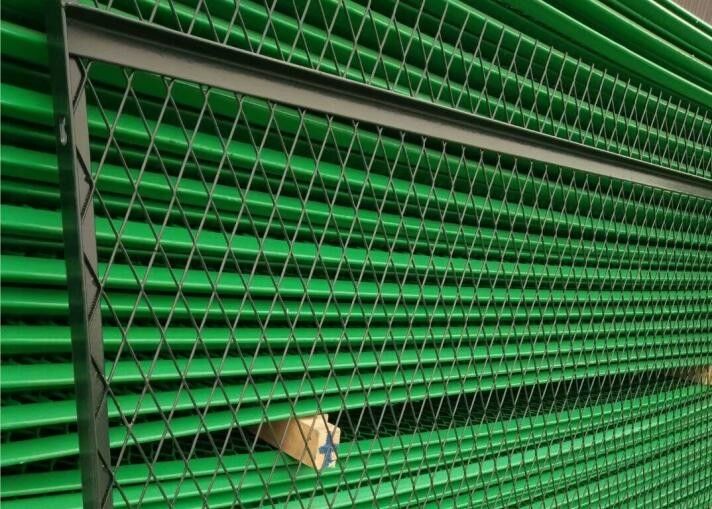

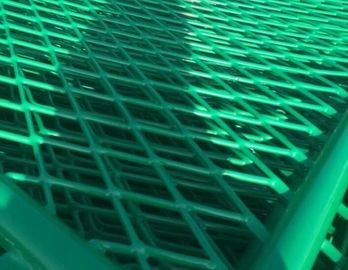

Flatten Green PVC Coated Expanded Metal Wire Mesh For Security Doors
Expanded Metal Wire Mesh Introduction
| Product name | expanded sheet, stamping plates, or expanded screen |
| Material | Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on. |
| Thickness | 0.3-12.0mm |
| Hole shape | round, square, diamond,rectangular perforations,octagonal cane,grecian, |
| plum blossom etc,can be made as your design. | |
| Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Surface treatment | 1.Powder coated |
| 2.Fluorocarbon spraying(PVDF) | |
| 3.Polishing | |
| Application | 1.Aerospace: nacelles, fuel filters, air filters |
| 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors | |
| 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption | |
| 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills | |
| 5.Hammer mill: screens for sizing and separating | |
| 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection | |
| 7.Pollution control: filters, separators | |
| 8.Mining: screens | |
| 9.Security: screens, walls, doors, ceilings, guards | |
| 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates | |
| Features | 1.can be formed easily |
| 2.can be paint or polished | |
| 3.easy installation | |
| 4.attractive appearance | |
| 5.wide range of thicknesses available | |
| 6.largest selection of hole size patterns and configurations | |
| 7.durable | |
| Package | 1.On pallet with waterproof cloth |
| 2.In wooden case with waterproof paper | |
| 3.In carton box | |
| 4.In roll with woven bag | |
| 5.In bulk or In bundle |
Expanded Metal Wire Mesh Specification
| Specifications of Expanded Metal Mesh | ||||||
| Thickness(mm) | SWD(mm) | LWD (mm) | Wire Stem Width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1.0 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2.0 | 0.73 |
| 0.6 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.0 |
| 0.8 | 10 | 25 | 1.0 | 0.6 | 2.0 | 1.25 |
| 1.0 | 10 | 25 | 1.1 | 0.6 | 2.0 | 1.77 |
| 1.0 | 15 | 40 | 1.5 | 2.0 | 4.0 | 1.85 |
| 1.2 | 10 | 25 | 1.5 | 2.0 | 4.0 | 2.21 |
| 1.2 | 15 | 40 | 1.1 | 2.0 | 4.0 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4.0 | 2.77 |
| 1.5 | 23 | 60 | 1.5 | 2.0 | 3.6 | 2.77 |
| 2.0 | 18 | 50 | 2.6 | 2.0 | 4.0 | 3.69 |
| 2.0 | 22 | 60 | 2.1 | 2.0 | 4.0 | 3.69 |
