Concertina Fencing 500mm Razor Barbed Wire

Concertina Fencing 500mm Razor Barbed Wire
Concertina Fencing 500mm Razor Barbed Wire Concertina Fencing 500mm Razor Barbed Wire Concertina Fencing 500mm Razor Barbed Wire

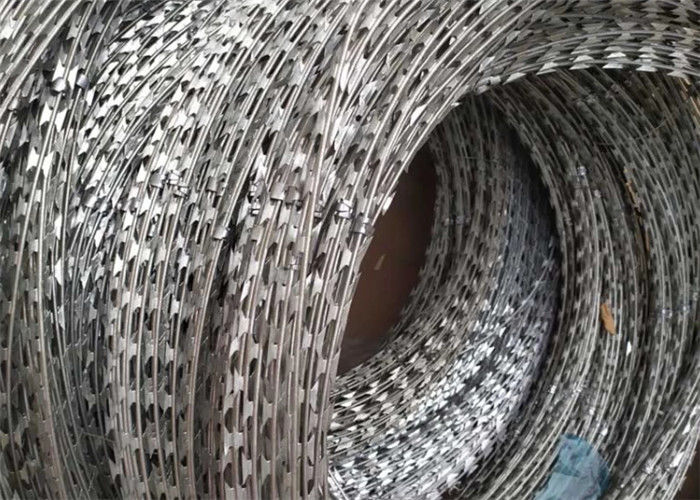

Large Image :  Concertina Fencing 500mm Razor Barbed Wire

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001:2008
Model Number: YH-22
Payment & Shipping Terms:
Minimum Order Quantity: 100 Rolls
Price: Negotiable
Packaging Details: Water-proof paper and woven bags
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 10000 Roll/Rolls per Month
Detailed Product Description
Material: Stainless Steel,low Carbon Wire Characteristics: Hard And Beautiful And Sharp
Usage: Security And Safety Surface: Galvanized/PVC Coated
Coil Diameter: 360-1000mm Zinc Coating: 40-280g/m2
High Light:

500mm Razor Barbed Wire

,

500mm razor blade barbed wire

,

Concertina Razor Barbed Wire



Concertina Razor Wire Razor Barbed Wire Fencing 500mm Coil Diameter




Razor Barbed Wire Description



Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.


Razor Barbed Wire Specification



Reference
Number
Thickness
mm
Wire Dia.
mm
Barb Length
mm
Barb Width
mm
Barb Spacing
mm
BT0-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BT0-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BT0-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BT0-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2



Outer diameter No.of Loops

Standard Length

per Coil

Type Notes
450mm 33 7M-8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 54 11M-15M CBT-65 Single coil
500mm 102 15M-18M BTO-12.18.22.28.30 Cross type
600mm 86 13M-16M BTO-12.18.22.28.30 Cross type
700mm 72 12M-15M BTO-12.18.22.28.30 Cross type
800mm 64 13M-15M BTO-12.18.22.28.30 Cross type
960mm 52 12M-15M BTO-12.18.22.28.30

Cross type





Razor Barbed Wire Feature



Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.



Razor Barbed Wire Packing Details

1. compression rolls, 5rolls, 10rolls, or more rolls as one bundle
2. water-proof paper inside with woven bag outside
3. 1roll, 3rolls or 5rolls in one carton
4. as customer request



Razor Barbed Wire Application



Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.

Also used for division of railway, highway, agricultural fencing, etc.



Surface Treatment



Concertina Fencing 500mm Razor Barbed Wire 0

                 Hot Dip Galvanized                                                                      PVC Coating

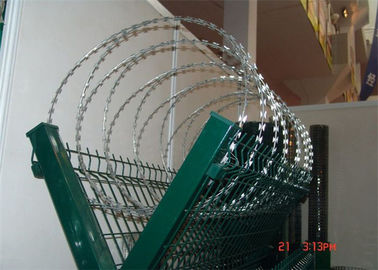

Razor Barbed Wire Usage



Concertina Fencing 500mm Razor Barbed Wire 1
