Product Details:
Payment & Shipping Terms:
|
| Material: | Hot Dip Galvanized Plate | Length: | 1.0-4.0m |
|---|---|---|---|
| Height: | 20-100mm | Thickness: | 0.8-3.2mm |
| Certification: | ISO9001:2015 | Model No.: | YuanHai0108 |
| Highlight: | UL-103B Galvanized Lintel,UL-103B galvanized steel lintels,galvanised steel lintels |
||

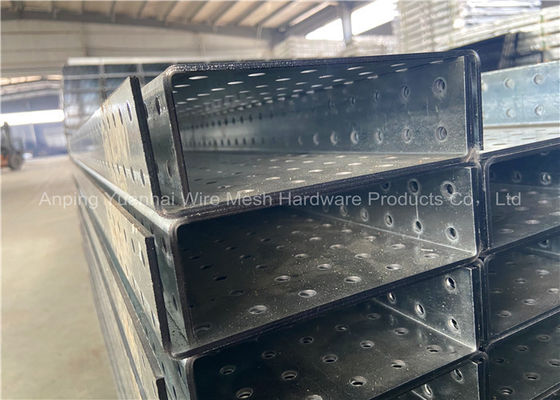

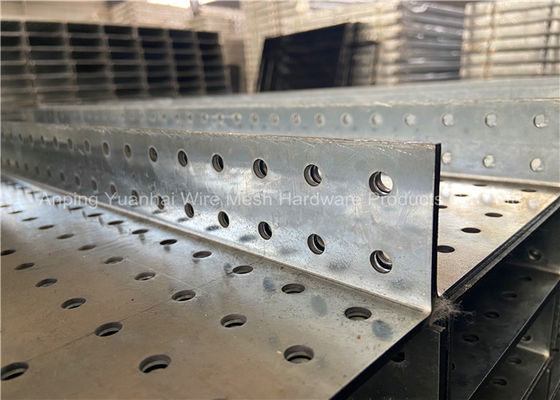

Perforated Galvanized Lintel Steel Door Lintel UL-103B For Construction
Perforated Galvanized Lintel Description
Perforated Galvanized Lintel is a lightweight galvanized steel component bent to shape to be accommodated with brick wall and ranging from lower to higher capacity wirh the increment of flange height and thickness.It is specifically designed to support brickwork above window and and door openings in replacement to conventional concrete lintel.As the component is light in weight and has a high load bearing capacity,it is easy to install and construction speed can be increased.Since the product finish is galvanized,it further improves corrosion resistance.
Perforated Lintel Features
High value e loads
No special inspection required
Labor Savings - less employees required to lift and install
Galvanized Perforated Lintel Specifications
| Models | UL-103 | UL-103A | UL-103B |
| Height | 50mm | 75mm | 75mm |
| Thickness (T) | 1.6mm | 1.6mm | 2.0mm |
| Length | 1100mm | 1100mm | 4000MM |
| 1200mm | 1200mm | ||
| 1300mm | 1300mm | ||
| 4000mm | 4000mm | ||
| Models | UL-103C | UL-103D | CL-100 |
| Height | 75mm | 100mm | - |
| Thickness (T) | 2.6mm | 2.6mm | - |
| Length | 4000mm | 4000mm | 1100mm |
| 1200mm | |||
| 3000mm |
Galvanized Perforated Lintel Application
Galvanized Perforated Lintel is used to replace conventional casting of concrete lintels over door or window openings.Light weight lintels are manufactured using steel of galvanized coating for anti- corrosion.
Perforated Galvanized Lintel Advantages
1.Lightweight yet stronger than conventional concrete lintels.
2.Easy to install into position without heavy lifting equipment needed.
3.High quality corrosion protection system i.e, galvanized to G275 for both internal and U-channel lintels.
4.Material design for better key to plaster.
5.e working loads are tabulated for reference to the type and design loads for end-users.(refer to Prof.Engineer and Setsco Load Reports)
6.Eliminates the need to cast concrete and saves time resulting in more speedy construction of walls.
Products Name
Steel Lintel |steel door lintel |window lintel|brick lintels| steel concrete lintels | window steel lintel | Internal Lintel | lintel bracket | HD lintel bracket | corrugated lintel | U-lintel | galvanized steel lintel | stone lintels | W-Beam | Masonry Lintel

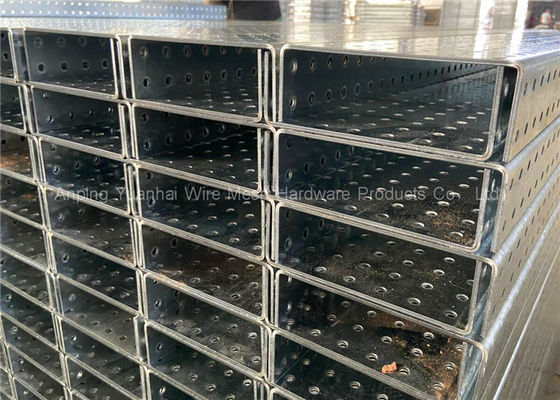

Package of Galvanized Perforated Lintel
