800*203*50mm GI Perforated U Lintel For Window Door Brick Support

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

800*203*50mm GI Perforated U Lintel For Window Door Brick Support

800*203*50mm GI Perforated U Lintel For Window Door Brick Support
800*203*50mm GI Perforated U Lintel For Window Door Brick Support 800*203*50mm GI Perforated U Lintel For Window Door Brick Support 800*203*50mm GI Perforated U Lintel For Window Door Brick Support

Large Image :  800*203*50mm GI Perforated U Lintel For Window Door Brick Support

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: YUANHAI
Certification: ISO 9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: steel pallet
Delivery Time: according to your quantity
Payment Terms: T/T
Supply Ability: 500 Ton/Tons per Month
Detailed Product Description
Material: GI Plate Length: 1000-4000mm
Height: 25mm/50mm/75mm/100mm Width: 103mm/153mm/203mm
Certification: ISO9001:2015 Application: Construction
High Light:

Perforated U Lintel

,

gi U Lintel

,

800*203*50mm U Lintel

GI Perforated Lintel U-lintel 800*203*50mm For Window/Door​





Description of GI Perforated Lintel



GI Perforated Lintel is used to replace conventional casting of concrete lintels over door or window opening.Light weight lintels are manufactured using steel of galvanized coating for anti- corrosion.



GI Perforated Lintel is a range of light weight, easy to install, high load bearing, hot dipped galvanized ribbed steel lintels for use with brick construction in the building industry; specifically designed to support brickwork above window and door openings in replacement to conventional concrete lintel.



Advantages of Perforated Lintel

  • No special inspection required

  • Save money by reducing construction costs!
  • High value safe loads
  • Labor Savings - less employees required to lift and install

  • High value safe loads
  • Lightweight and Easy to Lift-reduce injuries and save on insurance expenditures

Galvanized Perforated Lintel Specifications



Models UL-103 UL-103A UL-103B
Height 50mm 75mm 75mm
Thickness (T) 1.6mm 1.6mm 2.0mm
Length 1100mm 1100mm 4000MM
1200mm 1200mm
1300mm 1300mm
4000mm 4000mm
Models UL-103C UL-103D CL-100
Height 75mm 100mm -
Thickness (T) 2.6mm 2.6mm -
Length 4000mm 4000mm 1100mm
1200mm
3000mm






































Benefits of GI Perforated Lintel



1.Lightweight yet stronger than conventional concrete lintels.

2.Easy to install into position without heavy lifting equipment needed.

3.High quality corrosion protection system i.e, galvanized to G275 for both internal and U-channel lintels.

4.Material design for better key to plaster.

5.Safe working loads are tabulated for reference to the type and design loads for end-users.(refer to Prof.Engineer and Setsco Load Reports)

6.Eliminates the need to cast concrete and saves time resulting in more speedy construction of walls.

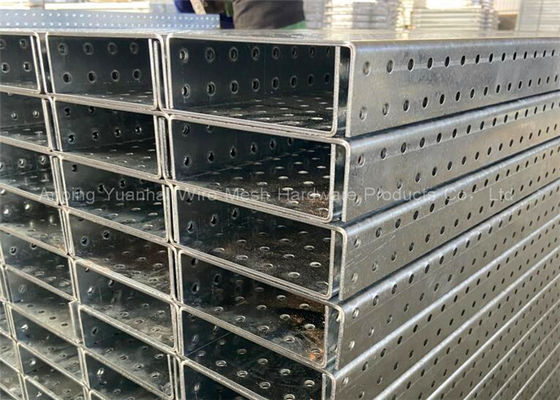

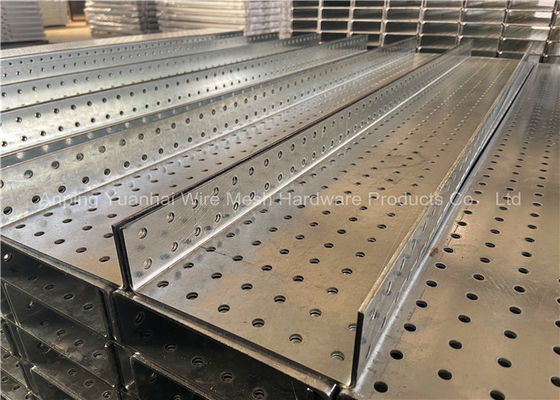

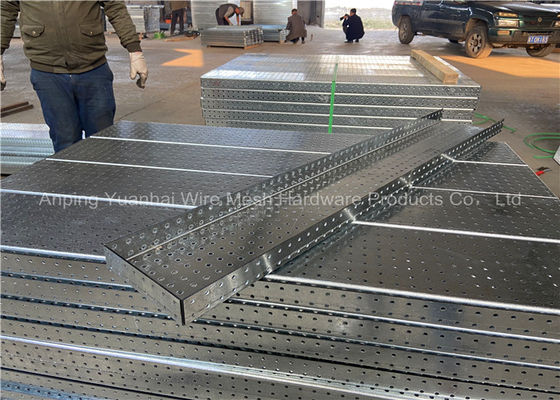

Package of Galvanized Perforated Lintel



800*203*50mm GI Perforated U Lintel For Window Door Brick Support 0800*203*50mm GI Perforated U Lintel For Window Door Brick Support 1



800*203*50mm GI Perforated U Lintel For Window Door Brick Support 2
