Perforated UL 103mm 153mm Steel Beam Lintel

Perforated UL 103mm 153mm Steel Beam Lintel
Perforated UL 103mm 153mm Steel Beam Lintel Perforated UL 103mm 153mm Steel Beam Lintel Perforated UL 103mm 153mm Steel Beam Lintel

Large Image :  Perforated UL 103mm 153mm Steel Beam Lintel

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: YUANHAI
Certification: ISO 9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 300 pcs
Price: Negotiable
Packaging Details: steel pallet
Delivery Time: according to your quantity
Payment Terms: T/T
Supply Ability: 500 Ton/Tons per Month
Detailed Product Description
Material: Galvanized Sheet Process: Perforated,Bending
Product Name: Steel Lintel Length: 1000-4000mm
Height: 25mm/50mm/75mm/100mm Application: Building Construction
High Light:

153mm steel beam lintel

,

103mm steel beam lintel

,

Galvanized Sheet Steel Beam Lintel



Perforated UL 103mm 153mm Building Material Steel Lintel Steel U Channel





Description of Steel Lintel



Steel lintels are horizontal members designed to carry brick/blockwork across door and window opening.Manufactory using high yield steel, its surface is perforated, then formed into channel section and finally rust protect. Steel lintel is a range of light weight, easy to install, high load bearing, hot dipped galvanized ribbed steel lintels for use with brick construction in the building industry; specifically designed to support brickwork above window and door openings in replacement to conventional concrete lintel.

Galvanized Perforated Lintel is used to replace conventional casting of concrete lintels over door or window opening.Light weight lintels are manufactured using steel of galvanized coating for anti- corrosion.



Advantages of Steel Lintel

  • Lightweight yet stronger than conventional concrete lintels.
  • Eliminates the need to cast concrete and saves time resulting in more speedy construction of walls.
  • Easy to install into position without heavy lifting equipment needed.
  • High quality corrosion protection system i.e, galvanized to G275 for both internal and U-channel lintels.
  • Material design for better key to plaster..Safe working loads are tabulated for reference to the type and design loads for end-users.(refer to Prof.Engineer and Setsco Load Reports)

Specification of Steel Lintel





ITEM NO. 153A 153B 153C 153D
Length 800 1300 800 1300 1600 800 1300 1600 1900 1300 1600 1900
Height 50 50 50 50 50 50 50 50 50 75 75 75
Internal Width 153 153 153 153 153 153 153 153 153 153 153 153
Thickness 2 2 2.5 2.5 2.5 3.2 3.2 3.2 3.2 3.2 3.2 3.2







ITEM NO. 203A 203B 203C 203D
Length 800 1300 800 1300 1600 800 1300 1600 1900 1300 1600 1900
Height 50 50 50 50 50 50 50 50 50 75 75 75
Internal Width 203 203 203 203 203 203 203 203 203 203 203 203
Thickness 2 2 2.5 2.5 2.5 3.2 3.2 3.2 3.2 3.2 3.2 3.2



Application of Steel Lintel



Galvanized Perforated Lintel is used to replace conventional casting of concrete lintels over door or window openings.Light weight lintels are manufactured using steel of galvanized coating for anti- corrosion.

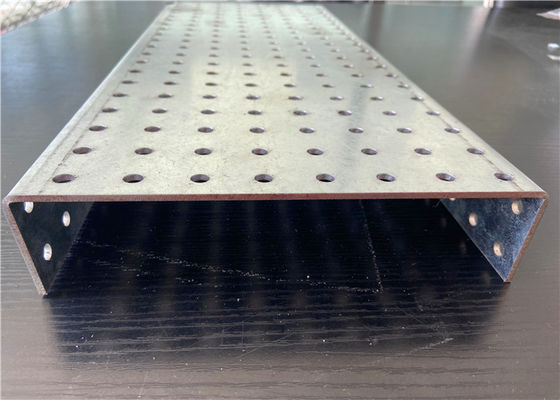

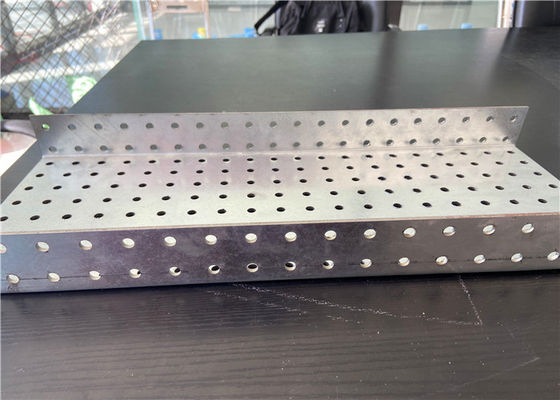

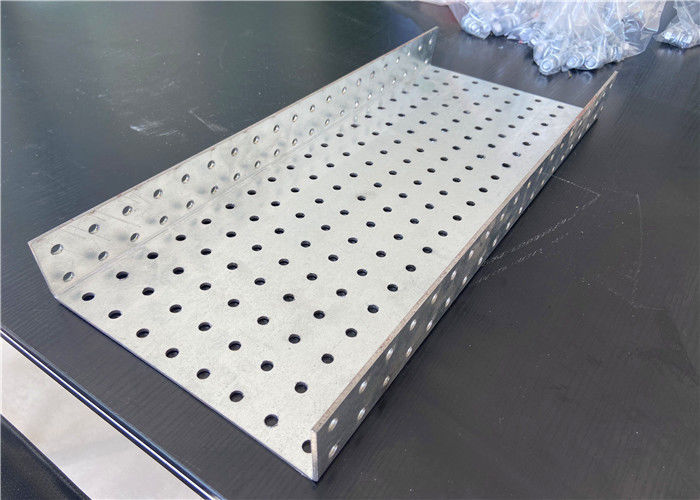

Product Show of Steel Lintel



Perforated UL 103mm 153mm Steel Beam Lintel 0Perforated UL 103mm 153mm Steel Beam Lintel 1Perforated UL 103mm 153mm Steel Beam Lintel 2



Perforated UL 103mm 153mm Steel Beam Lintel 3
