Concrete Window Lintels G275 Galvanized Perforated Wire Mesh

Name: Concrete Window Lintels G275 Galvanized Perforated Wire Mesh
Brand: YUANHAI
SKU: YH-08
Rating: 4.8 (134 reviews)

Large Image : Concrete Window Lintels G275 Galvanized Perforated Wire Mesh

Product Details:

Place of Origin:	Anping,Hebei,China
Brand Name:	YUANHAI
Certification:	ISO 9001:2015
Model Number:	YH-08

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	steel pallet
Delivery Time:	according to your quantity
Payment Terms:	T/T
Supply Ability:	500 Ton/Tons per Month

Contact Now

Detailed Product Description

Material:	Galvanized Steel Sheet	Process:	Perforated,Bending
Product Name:	Window/Door Bear Lintel	Length:	1.0-4.0m
Height:	20-100mm	E Distributed Loading:	0.2-0.7MT
Thickness:	1.-4.0mm	Application:	Window Or Door Brick Steel Lintel
Hole Shape:	Round/Square Hole	Internal Width:	103mm,153mm,203mm
Highlight:	50mm perforated wire mesh , G275 galvanized perforated wire mesh , 1.6mm perforated concrete lintel

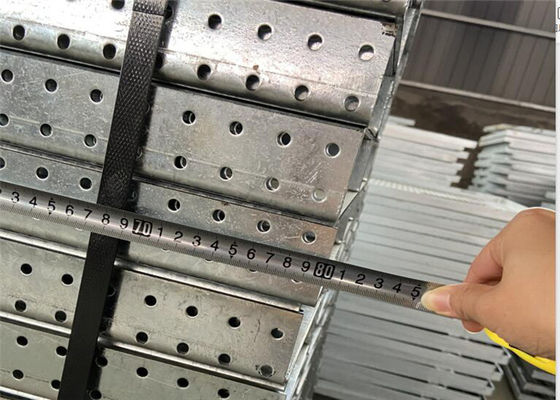

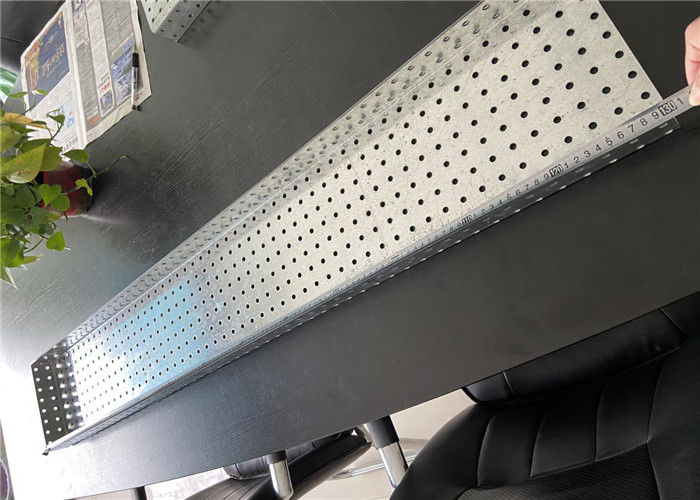

Concrete Lintel Perforated Wire Mesh Window Lintels 1200*153mm*50mm

Description of Perforated Lintel

Steel lintel is used to replace conventional casting of concrete lintels over door or window openings.Light weight lintels are manufactured using steel of galvanized coating for anti- corrosion. Steel Lintel is acclaimed among the clients for optimum quality and durable finishing standards. Offered Lintel is manufactured using quality assured raw components and advanced technology. Besides, these can be availed at market leading prices.

Advantages of Perforated Lintel

e working loads are tabulated for reference to the type and design loads for end-users.(refer to Prof.Engineer and Setsco Load Reports)
Eliminates the need to cast concrete and saves time resulting in more speedy construction of walls.
Lightweight yet stronger than conventional concrete lintels.
Easy to install into position without heavy lifting equipment needed.
High quality corrosion protection system i.e, galvanized to G275 for both internal and U-channel lintels.
Material design for better key to plaster.

Quick Details:

Place of Origin:

Hebei, China

Brand Name:

YuanHai

Material:

Steel, steel

Description:

Building U Galvanized reinforced steel concrete window brick lintels

Shape:

U channel,W shape

Steel lintel surface:

Hot Dipped Galvanized

U Channel type:

Internal width 103mm,153mm,203mm

Thickness:

1.6mm-3.2mm or as required

Height:

50mm,75mm,100mm or as required

Length:

800mm,1300mm,1600mm,1900mm

W beam type:

Width 90mm,hole distance 100mm

Used for:

window lintel or door lintel,brick lintel,stone lintels

Supply Ability

50000 Ton/Tons per Month Galvanized reinforced steel concrete window brick lintels

Packaging & Delivery

Building U channel Galvanized reinforced steel concrete window brick lintels packing in bulk bundle or pallet

Tianjin

Building U Galvanizedwindow steel lintel delivery 30days

Specification of Galvanized Perforated Lintel

Models	UL-103	UL-103A	UL-103B
Height	50mm	75mm	75mm
Thickness (T)	1.6mm	1.6mm	2.0mm
Length	1100mm	1100mm	4000MM
	1200mm	1200mm
	1300mm	1300mm
	4000mm	4000mm
Models	UL-103C	UL-103D	CL-100
Height	75mm	100mm	-
Thickness (T)	2.6mm	2.6mm	-
Length	4000mm	4000mm	1100mm
			1200mm
			3000mm

Package of Galvanized Perforated Lintel
