Blockwork Internal Window Lintel 153mm Perforated Wire Mesh

Name: Blockwork Internal Window Lintel 153mm Perforated Wire Mesh
Brand: YUANHAI
SKU: YH-08
Rating: 4.8 (147 reviews)

Large Image : Blockwork Internal Window Lintel 153mm Perforated Wire Mesh

Product Details:

Place of Origin:	Anping,Hebei,China
Brand Name:	YUANHAI
Certification:	ISO 9001:2015
Model Number:	YH-08

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	steel pallet
Delivery Time:	according to your quantity
Payment Terms:	T/T
Supply Ability:	500 Ton/Tons per Month

Contact Now

Detailed Product Description

Material:	Galvanized Steel Sheet	Process:	Perforated,Bending
Product Name:	Window/Door Bear Lintel	Length:	1.0-4.0m
Height:	20-100mm	E Distributed Loading:	0.2-0.7MT
Thickness:	1.-4.0mm	Application:	Window Or Door Brick Steel Lintel
Hole Shape:	Round/Square Hole	Internal Width:	103mm,153mm,203mm
Highlight:	153mm perforated wire mesh , 153mm perforated lintel , 0.7MT perforated lintel

Blockwork Internal Window Lintel Perforated Wire Mesh 153mm For Buliding

Perforated Lintel Advantages

e working loads are tabulated for reference to the type and design loads for end-users.(refer to Prof.Engineer and Setsco Load Reports)
Eliminates the need to cast concrete and saves time resulting in more speedy construction of walls.
Lightweight yet stronger than conventional concrete lintels.
Easy to install into position without heavy lifting equipment needed.
High quality corrosion protection system i.e, galvanized to G275 for both internal and U-channel lintels.
Material design for better key to plaster.

Perforated Lintel Description

Steel lintel is used to replace conventional casting of concrete lintels over door or window openings.Light weight lintels are manufactured using steel of galvanized coating for anti- corrosion. Steel Lintel is acclaimed among the clients for optimum quality and durable finishing standards. Offered Lintel is manufactured using quality assured raw components and advanced technology. Besides, these can be availed at market leading prices.

Galvanized Perforated Lintel Specifications

ITEM NO.	103		103A		103B			103C				103D
Length	800	1300	800	1300	800	1300	1600	800	1300	1600	1900	1300	1600	1900
Height	50	50	75	75	75	75	75	75	75	75	75	100	100	100
Internal Width	103	103	103	103	103	103	103	103	103	103	103	103	103	103
Thickness	16	1.6	1.6	1.6	2	2	2	2.6	2.6	2.6	2.6	2.6	2.6	2.6

ITEM NO.	153A		153B			153C				153D
Length	800	1300	800	1300	1600	800	1300	1600	1900	1300	1600	1900
Height	50	50	50	50	50	50	50	50	50	75	75	75
Internal Width	153	153	153	153	153	153	153	153	153	153	153	153
Thickness	2	2	2.5	2.5	2.5	3.2	3.2	3.2	3.2	3.2	3.2	3.2

ITEM NO.	203A		203B			203C				203D
Length	800	1300	800	1300	1600	800	1300	1600	1900	1300	1600	1900
Height	50	50	50	50	50	50	50	50	50	75	75	75
Internal Width	203	203	203	203	203	203	203	203	203	203	203	203
Thickness	2	2	2.5	2.5	2.5	3.2	3.2	3.2	3.2	3.2	3.2	3.2

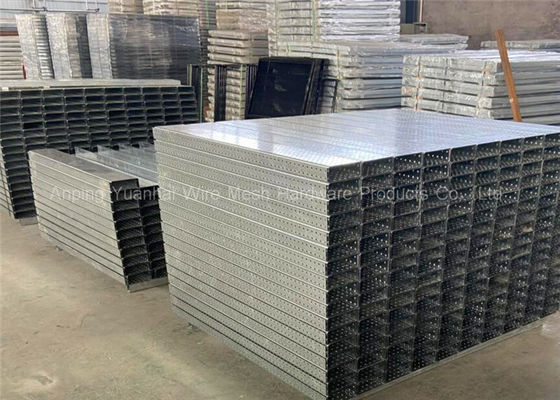

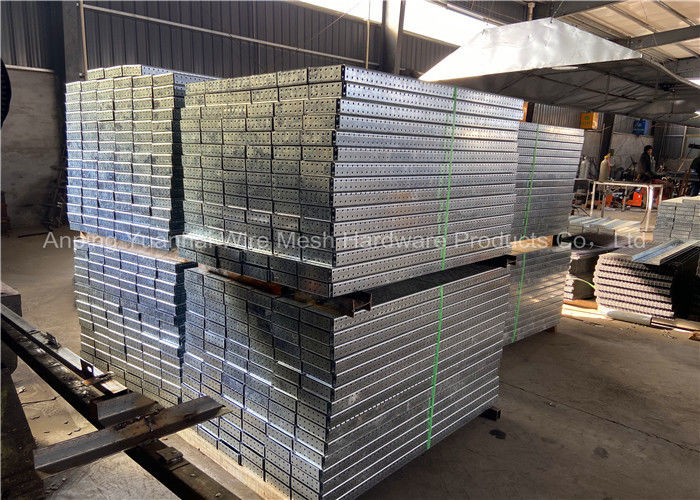

Galvanized Perforated Lintel Product Show

Blockwork Internal Window Lintel 153mm Perforated Wire Mesh 0
