1300*203*50mm Construction Galvanized Perforated Lintel Brackets

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

1300*203*50mm Construction Galvanized Perforated Lintel Brackets

1300*203*50mm Construction Galvanized Perforated Lintel Brackets
1300*203*50mm Construction Galvanized Perforated Lintel Brackets 1300*203*50mm Construction Galvanized Perforated Lintel Brackets

Large Image :  1300*203*50mm Construction Galvanized Perforated Lintel Brackets

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: YUANHAI
Certification: ISO 9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: steel pallet
Delivery Time: according to your quantity
Payment Terms: T/T
Supply Ability: 500 Ton/Tons per Month
Detailed Product Description
Material: Galvanized Steel Sheet Process: Perforated,Bending
Product Name: Window/Door Bear Lintel Length: 1.0-4.0m
Height: 20-100mm Safe Distributed Loading: 0.2-0.7MT
Thickness: 1.-4.0mm Application: Window Or Door Brick Steel Lintel
Hole Shape: Round/Square Hole Internal Width: 103mm,153mm,203mm
High Light:

perforated lintel brackets

,

Galvanized lintel brackets

,

1.0mm length lintel brackets

1300*203*50mm Building Construction Lintel Brackets Galvanized Preforated





Perforated Lintel Description



Galvanized Perforated Lintel is a range of light weight, easy to install, high load bearing, hot dipped galvanized ribbed steel lintels for use with brick construction in the building industry; specifically designed to support brickwork above window and door openings in replacement to conventional concrete lintel.

Galvanized Perforated Lintel is used to replace conventional casting of concrete lintels over door or window opening.Light weight lintels are manufactured using steel of galvanized coating for anti- corrosion.

Galvanized Perforated is acclaimed among the clients for optimum quality and durable finishing standards. Offered Lintel is manufactured using quality assured raw components and advanced technology. Besides, these can be availed at market leading prices.

Metal lintels are horizontal members designed to carry brick/blockwork across door and window opening.Manufactory using high yield steel, its surface is perforated, then formed into channel section and finally rust protecte



Perforated Lintel Advantages

  • Safe working loads are tabulated for reference to the type and design loads for end-users.(refer to Prof.Engineer and Setsco Load Reports)
  • Eliminates the need to cast concrete and saves time resulting in more speedy construction of walls.
  • Lightweight yet stronger than conventional concrete lintels.
  • Easy to install into position without heavy lifting equipment needed.
  • High quality corrosion protection system i.e, galvanized to G275 for both internal and U-channel lintels.
  • Material design for better key to plaster.

Galvanized Perforated Lintel Specifications



ITEM NO. 103 103A 103B 103C 103D
Length 800 1300 800 1300 800 1300 1600 800 1300 1600 1900 1300 1600 1900
Height 50 50 75 75 75 75 75 75 75 75 75 100 100 100
Internal Width 103 103 103 103 103 103 103 103 103 103 103 103 103 103
Thickness 16 1.6 1.6 1.6 2 2 2 2.6 2.6 2.6 2.6 2.6 2.6 2.6





ITEM NO. 153A 153B 153C 153D
Length 800 1300 800 1300 1600 800 1300 1600 1900 1300 1600 1900
Height 50 50 50 50 50 50 50 50 50 75 75 75
Internal Width 153 153 153 153 153 153 153 153 153 153 153 153
Thickness 2 2 2.5 2.5 2.5 3.2 3.2 3.2 3.2 3.2 3.2 3.2







ITEM NO. 203A 203B 203C 203D
Length 800 1300 800 1300 1600 800 1300 1600 1900 1300 1600 1900
Height 50 50 50 50 50 50 50 50 50 75 75 75
Internal Width 203 203 203 203 203 203 203 203 203 203 203 203
Thickness 2 2 2.5 2.5 2.5 3.2 3.2 3.2 3.2 3.2 3.2

3.2





Feature of Perforated Lintel

  • Varied lengths
  • Market leading prices
  • Premium quality
  • Save money by reducing construction costs!
  • High value safe loads

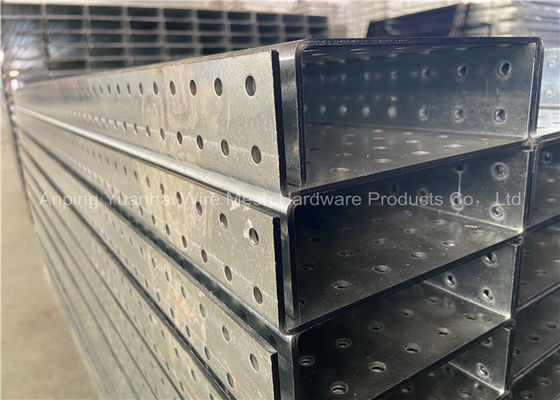

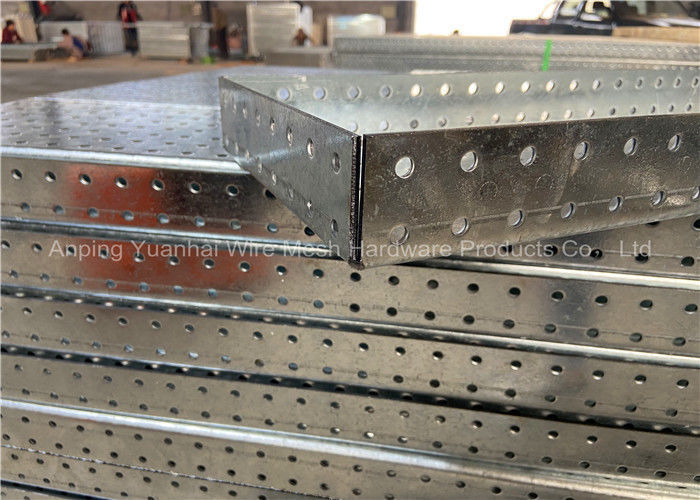

Galvanized Perforated Lintel Product Show



1300*203*50mm Construction Galvanized Perforated Lintel Brackets 01300*203*50mm Construction Galvanized Perforated Lintel Brackets 11300*203*50mm Construction Galvanized Perforated Lintel Brackets 2
