| Material: | Stainless Steel, Aluminium , Steel Carbon | Hole Shape: | Diamond/Hexagonal Mesh Hole |
|---|---|---|---|
| Surface Treatment: | Galvanized, Powder Coated | LWD: | 25mm-100mm |
| SWD: | 10mm-50mm | Technique: | Perforated |
| Feature: | Anti-corrosion And Anti-rust | Thickness: | 0.5-8mm |
| Port: | Xingang | Sample: | Free |
| Application: | Platform ,protection ,mine,building ,so On | Brand: | Yuanhai |
| Highlight: | steel expanded metal sheet flattened,41x19mm flattened expanded metal mesh,Hexagonal flattened expanded metal mesh |
||

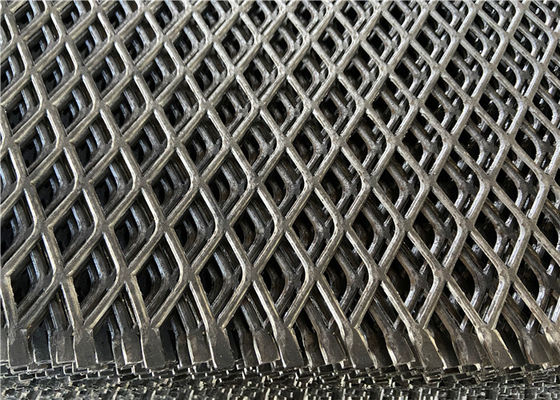

Hexagonal Hole Flattened Expanded Metal Mesh For Security 41x19mm
Expanded Metal Sheet Description
Expanded metal steel series, hole strong and long service life, use a wide range, mainly used in civil engineering batch of cement,machinery and equipment protection, handicraft manufacturing, high-end speaker net enclosures. Highway guardrail, sports venues fence, the road green belt protection net. Network can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways. Also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, e passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!
| Sheet Thickness (mm) |
SWG (mm) |
LWG (mm) |
Strand Width (mm) |
Width (m) |
Length (m) |
Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
Expanded Metal Sheet Feature
Anti-corrosion and anti-rust.
Various colours can be selected as needed.
Excellent artistic effect for decoration.
Good tensile strength and durability.
Expanded Metal Sheet Application
Expanded metal mesh has a wide range of uses, graceful shapes , strong processing capability. A major advantage of expanded is that the mesh is formed from a single piece of material and the process is not wasteful and therefore cost effective.
Main use: metal surface treatment and after processing, are widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children’s seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.

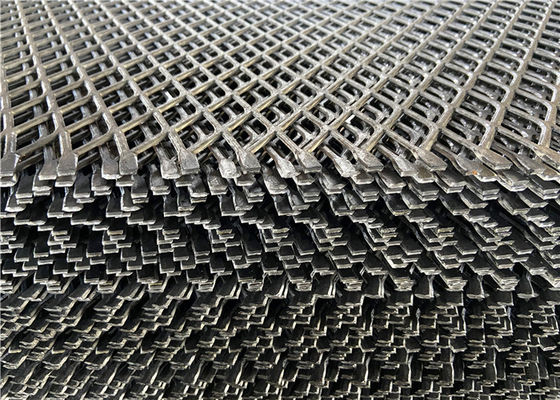

Expanded Metal Sheet Warehouse
