Heavy Duty Black Thickness 8.0mm Expanded Metal Wire Mesh

Heavy Duty Black Thickness 8.0mm Expanded Metal Wire Mesh
Heavy Duty Black Thickness 8.0mm Expanded Metal Wire Mesh Heavy Duty Black Thickness 8.0mm Expanded Metal Wire Mesh

Large Image :  Heavy Duty Black Thickness 8.0mm Expanded Metal Wire Mesh

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001:2008
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square Meters
Price: Negotiable
Packaging Details: palletized or loose load in the container
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 100000 Square Meters per Week
Detailed Product Description
Material: Stainless Steel, Aluminium , Steel Carbon Hole Shape: Diamond/Hexagonal Mesh Hole
Surface Treatment: Galvanized, Powder Coated LWD: 25mm-100mm
SWD: 10mm-50mm Technique: Perforated
Feature: Anti-corrosion And Anti-rust Thickness: 0.5-8mm
Port: Xingang Sample: Free
Application: Platform ,protection ,mine,building ,so On Brand: Yuanhai
High Light:

8.0mm expanded metal wire mesh

,

thickness 8.0mm expanded wire mesh

,

Galvanised Expanded Metal Wire Mesh

Heavy Duty Black Expanded Metal Mesh For Security Thickness 8.0mm





Expanded Metal Sheet Description



Expanded metal steel series, hole strong and long service life, use a wide range, mainly used in civil engineering batch of cement,machinery and equipment protection, handicraft manufacturing, high-end speaker net enclosures. Highway guardrail, sports venues fence, the road green belt protection net. Network can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways. Also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, safe passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!


material Low carbon steel ,Stainless steel plate,Aluminium plate,Al-Ma alloy plate,Copper plate,Nickel plate
Surface treatment PVC coated or sprayed,Hot dipped galvanized ,Electro galvanized ,lacquer painting
Hole Shape diamond ,hexangular, as request
Aperture as you needed
Wire Gauge min 0.8mm
mesh of width max 3m

Expanded Metal Sheet Specification

Sheet Thickness
(mm)
SWG
(mm)
LWG
(mm)
Strand Width
(mm)
Width
(m)
Length
(m)
Weight
(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39



Expanded Metal Sheet Feature



Anti-corrosion and anti-rust.

Various colours can be selected as needed.

Excellent artistic effect for decoration.

Good tensile strength and durability.



Expanded Metal Sheet Application



Expanded metal mesh has a wide range of uses, graceful shapes , strong processing capability. A major advantage of expanded is that the mesh is formed from a single piece of material and the process is not wasteful and therefore cost effective.

Main use: metal surface treatment and after processing, are widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children’s seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.

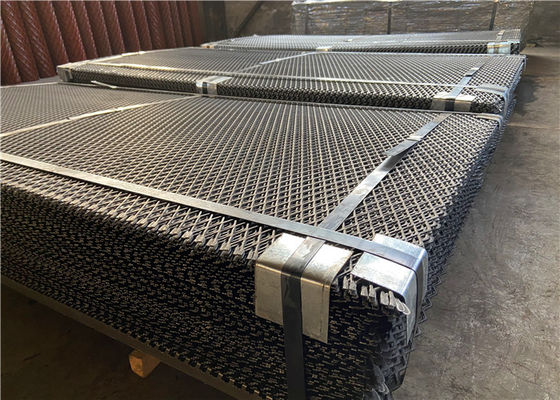

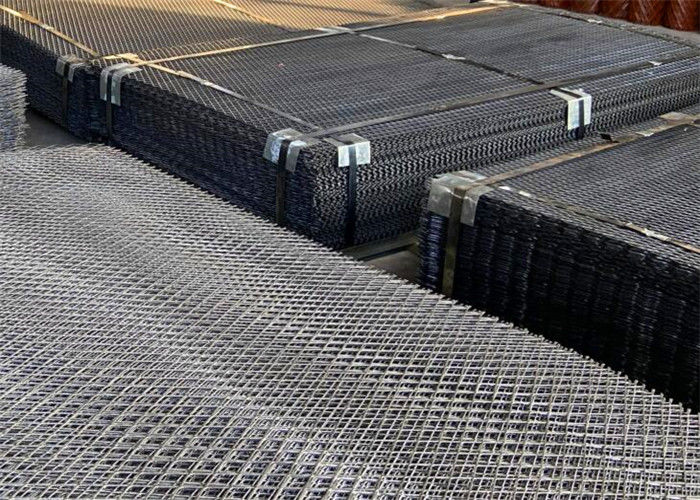

Expanded Metal Sheet Warehouse



Heavy Duty Black Thickness 8.0mm Expanded Metal Wire Mesh 0
