Low Carbon Steel 100mm Expanded Metal Wire Mesh Grate Tread Platform

Low Carbon Steel 100mm Expanded Metal Wire Mesh Grate Tread Platform
Low Carbon Steel 100mm Expanded Metal Wire Mesh Grate Tread Platform Low Carbon Steel 100mm Expanded Metal Wire Mesh Grate Tread Platform

Large Image :  Low Carbon Steel 100mm Expanded Metal Wire Mesh Grate Tread Platform

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001:2008
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square Meters
Price: Negotiable
Packaging Details: palletized or loose load in the container
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 100000 Square Meters per Week
Detailed Product Description
Material: Stainless Steel, Aluminium , Steel Carbon Hole Shape: Diamond/Hexagonal Mesh Hole
Surface Treatment: Galvanized, Powder Coated LWD: 25mm-100mm
SWD: 10mm-50mm Technique: Perforated
Feature: Anti-corrosion And Anti-rust Thickness: 0.5-8mm
Port: Xingang Sample: Free
Application: Platform ,protection ,mine,building ,so On Brand: Yuanhai
High Light:

100mm expanded metal wire mesh

,

100mm expanded steel wire mesh

,

dia2.5mm expanded metal wire mesh

Low Carbon Steel Expanded Metal Wire Mesh Grate Tread Platform





Expanded Metal Sheet Description



1)Wire Diameter: 2.5-8.0mm

2)Aperture: 2.0-50mm

3)Width: 1-30mm

4)Mesh Length: 1-10m

5)Mesh Width: 0.5-2m

6)LWD: 4.5-100mm

7)SWD: 2.5-50mm

8) Sheet Thickness: 0.5-8mm



Expanded metal steel series, hole strong and long service life, use a wide range, mainly used in civil engineering batch of cement,machinery and equipment protection, handicraft manufacturing, high-end speaker net enclosures. Highway guardrail, sports venues fence, the road green belt protection net. Network can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways. Also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, safe passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!


Expanded Metal Sheet Specification

EXPANDED METAL MESH
Thickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width & Length
0.5 2.5 4.5 0.5















Width: 0.5m-2.0m

Length: 30m, 50m





Other sizes can be made as request

0.5 10 25 0.5
0.6 10 25 1
0.8 10 25 1
1 10 25 1.1
1 15 40 1.5
1.2 10 25 1.1
1.2 15 40 1.5
1.5 15 40 1.5
1.5 23 60 2.6
2 18 50 2.1
2 22 60 2.6
3 40 80 3.8
4 50 100 4
4 60 120 4
4 80 180 4
4 100 200 4
4.5 50 100 5
5 50 100 5
5 75 150 5
6 50 100 6
8 50 100 8



Expanded Metal Sheet Feature



1)Strong and durable, with Elegant appearance

2)Easy maintenance, high visibility.

3)Antioxidant and corrosion resistant, long lifetime.

4)Convenient installation, and not easy to be damaged.

5)Environmental protection product, can be recycled.



Expanded Metal Sheet Application



1. Expanded metal wire mesh could be civil engineering, building walls, crafts manufacturing, ships, highways, railways, bridges, boilers and other platforms, pedals, and can also be used as reinforcements for cement and light construction materials.

2. Heat dissipation hoods and mechanical transmission protective covers for various vehicles, air compressors, etc., high-end audio speaker mesh covers, filters, air-conditioning equipment, outdoor furniture, mechanical equipment protection, highway guardrails, railway guardrails, building decoration, platform walkways Non-slip etc.
3. Fences for sports venues. Road green belt protection net, municipal engineering protection net.

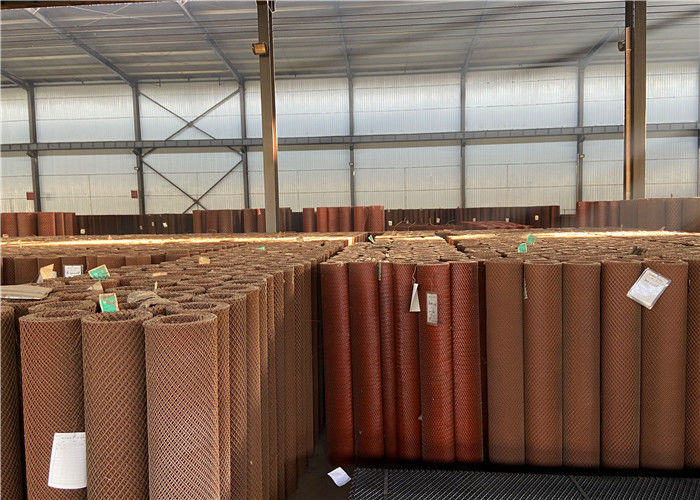

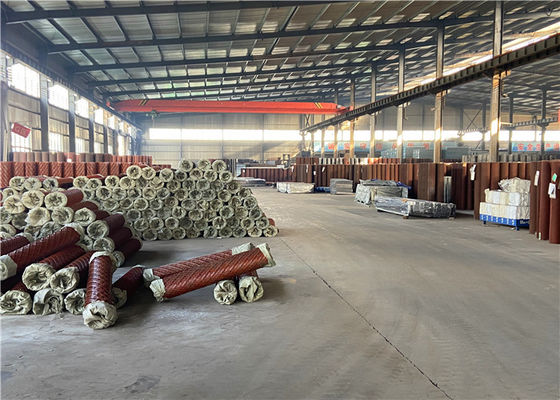

Expanded Metal Sheet Pictures

Low Carbon Steel 100mm Expanded Metal Wire Mesh Grate Tread Platform 0Low Carbon Steel 100mm Expanded Metal Wire Mesh Grate Tread Platform 1
