| Material: | Stainless Steel, Aluminium , Steel Carbon | Hole Shape: | Diamond/Hexagonal Mesh Hole |
|---|---|---|---|
| Surface Treatment: | Galvanized, Powder Coated | LWD: | 25mm-100mm |
| SWD: | 10mm-50mm | Technique: | Perforated |
| Feature: | Anti-corrosion And Anti-rust | Thickness: | 0.5-8mm |
| Port: | Xingang | Sample: | Free |
| Application: | Platform ,protection ,mine,building ,so On | Brand: | Yuanhai |
| Highlight: | 1.22x2.44m stainless steel expanded metal sheet,1.22x2.44m expanded metal sheet,diamond stainless steel expanded metal sheet |
||
PVC Coated Expanded Metal Sheet Black Iron 1.22x2.44m Diamond Hole
Expanded Metal Sheet Introduction
Expanded mesh, also known as stretched mesh, punched and cut mesh, metal mesh, metal plate mesh, iron plate mesh, metal expanded mesh, diamond mesh, punched mesh, heavy expanded metal mesh, etc., is a variety in the metal screen industry. As the name implies, it refers to a metal wire mesh product with diamond meshes formed by punching and cutting a metal sheet through a punching and shearing machine.
Expanded Metal Sheet Description
1)Wire Diameter: 2.5-8.0mm
2)Aperture: 2.0-50mm
3)Width: 1-30mm
4)Mesh Length: 1-10m
5)Mesh Width: 0.5-2m
6)LWD: 4.5-100mm
7)SWD: 2.5-50mm
8) Sheet Thickness: 0.5-8mm
9)Expanded metal comes in two types: 1.Standard/Regular Expanded Metal 2.Flattened Expanded Metal.
| EXPANDED METAL MESH | ||||
| Thickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width & Length |
| 0.5 | 2.5 | 4.5 | 0.5 |
Width: 0.5m-2.0m Length: 30m, 50m
Other sizes can be made as request |
| 0.5 | 10 | 25 | 0.5 | |
| 0.6 | 10 | 25 | 1 | |
| 0.8 | 10 | 25 | 1 | |
| 1 | 10 | 25 | 1.1 | |
| 1 | 15 | 40 | 1.5 | |
| 1.2 | 10 | 25 | 1.1 | |
| 1.2 | 15 | 40 | 1.5 | |
| 1.5 | 15 | 40 | 1.5 | |
| 1.5 | 23 | 60 | 2.6 | |
| 2 | 18 | 50 | 2.1 | |
| 2 | 22 | 60 | 2.6 | |
| 3 | 40 | 80 | 3.8 | |
| 4 | 50 | 100 | 4 | |
| 4 | 60 | 120 | 4 | |
| 4 | 80 | 180 | 4 | |
| 4 | 100 | 200 | 4 | |
| 4.5 | 50 | 100 | 5 | |
| 5 | 50 | 100 | 5 | |
| 5 | 75 | 150 | 5 | |
| 6 | 50 | 100 | 6 | |
| 8 | 50 | 100 | 8 | |
Expanded Metal Sheet Feature
1)Strong and durable, with Elegant appearance
2)Easy maintenance, high visibility.
3)Antioxidant and corrosion resistant, long lifetime.
4)Convenient installation, and not easy to be damaged.
5)Environmental protection product, can be recycled.
Expanded Metal Sheet Application
Expanded Metal Sheet is widely used throughout the transportation industry, agriculture, security, machine guards, floorings, construction, architecture and interior design. The use of this kind of expanded metal mesh is highly beneficial, and of cost saving and low maintenance.
We manufacture a full range of standard and flattened expanded metal, structural grating, micro mesh and decorative patterns. Raw material can be produced in carbon, galvanized, stainless steel or high strength alloy steel. Certain alloys of copper, brass, bronze and plastics can be expanded as well.
Expanded metal steel sheet can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways.
Expanded metal steel sheet also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, e passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!

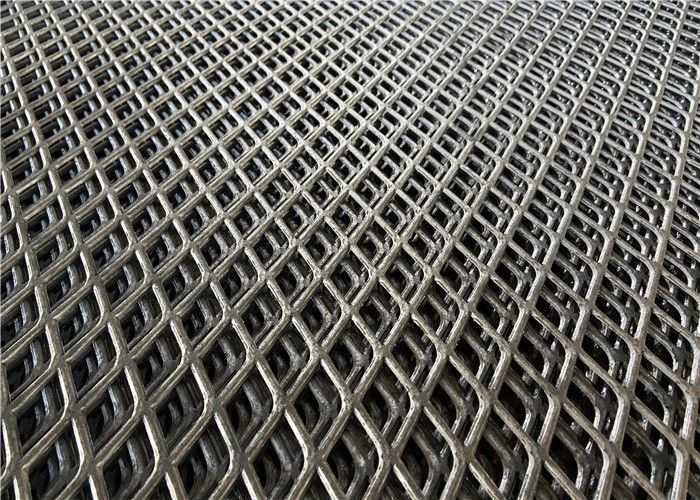

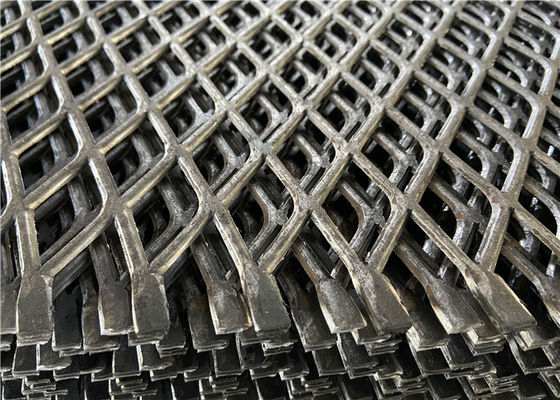

Expanded Metal Sheet Product Show
