Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel, Aluminium , Steel Carbon | Hole Shape: | Diamond Mesh Hole |
|---|---|---|---|
| Surface Treatment: | Galvanized, Powder Coated | LWD: | 25mm-100mm |
| SWD: | 10mm-50mm | Technique: | Perforated |
| Feature: | Anti-corrosion And Anti-rust | Thickness: | 0.5-8mm |
| Port: | Xingang | Sample: | Free |
| Application: | Platform ,protection ,mine,building ,so On | Brand: | Yuanhai |
| Highlight: | expanded metal sheet 4x8ft,3.0mm steel expanded metal sheet,4x8ft steel expanded metal sheet |
||

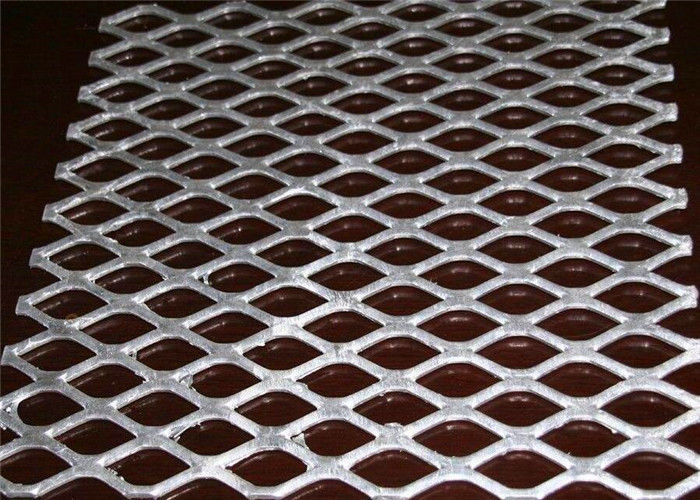

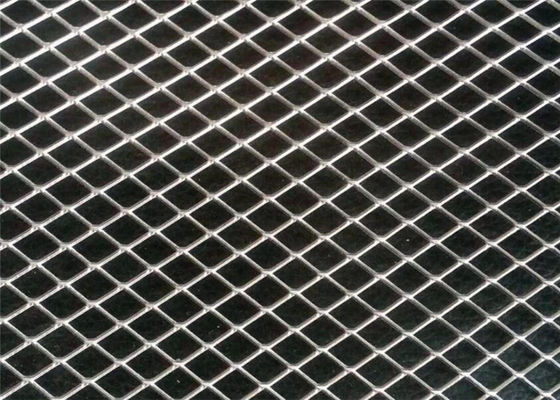

PVC Coating Expanded Metal Wire Mesh 4x8ft For Window Thickness 3.0mm
Expanded Metal Sheet Description
Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.
Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.
Expanded Metal Sheet Introduction
* Material: Low carbon steel sheet, cold rolled sheet, aluminum sheet,stainless steel sheet
* Processing mode: Deep stamping and drawing process
* Classification:
I. Electric/Hot dipped galvanized expanded mesh;
II. Copper plated expanded mesh;
III. PVC coated expanded mesh;
IV. Aluminum expanded mesh.
|
EXPANDED MESH |
||||
| Thickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width & Length |
| 0.5 | 2.5 | 4.5 | 0.5 |
Width: 0.5m-2.0m Length: 30m, 50m
Other sizes can be made as request |
| 0.5 | 10 | 25 | 0.5 | |
| 0.6 | 10 | 25 | 1 | |
| 0.8 | 10 | 25 | 1 | |
| 1 | 10 | 25 | 1.1 | |
| 1 | 15 | 40 | 1.5 | |
| 1.2 | 10 | 25 | 1.1 | |
| 1.2 | 15 | 40 | 1.5 | |
| 1.5 | 15 | 40 | 1.5 | |
| 1.5 | 23 | 60 | 2.6 | |
| 2 | 18 | 50 | 2.1 | |
| 2 | 22 | 60 | 2.6 | |
| 3 | 40 | 80 | 3.8 | |
| 4 | 50 | 100 | 4 | |
| 4 | 60 | 120 | 4 | |
| 4 | 80 | 180 | 4 | |
| 4 | 100 | 200 | 4 | |
| 4.5 | 50 | 100 | 5 | |
| 5 | 50 | 100 | 5 | |
| 5 | 75 | 150 | 5 | |
| 6 | 50 | 100 | 6 | |
| 8 | 50 | 100 | 8 | |
Expanded Metal Sheet Feature
1. Strong and sturdy
It has the advantages of firmness and durability.
2. High Visibility
It has high visibility and high ety.
3. Shock resistance
It has strong hole shape to resist shake and break.
Small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
Expanded Metal Sheet Application
Expanded metal mesh has a wide range of uses, graceful shapes , strong processing capability. A major advantage of expanded is that the mesh is formed from a single piece of material and the process is not wasteful and therefore cost effective.
Main use: metal surface treatment and after processing, are widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children’s seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.
