OEM 30x5mm Steel Walkway Grating Trench Drain Cover Q195

OEM 30x5mm Steel Walkway Grating Trench Drain Cover Q195
OEM 30x5mm Steel Walkway Grating Trench Drain Cover Q195 OEM 30x5mm Steel Walkway Grating Trench Drain Cover Q195

Large Image :  OEM 30x5mm Steel Walkway Grating Trench Drain Cover Q195

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G1
Payment & Shipping Terms:
Minimum Order Quantity: 50Pcs
Price: Negotiable
Packaging Details: 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Supply Ability: 5000Pcs Per Month
Detailed Product Description
Material: Q195,Q235 Surface Treatment: Hot Dip Galvanized,Electric Galvanized
Bearing Bar: 20x5, 25x3, 25x4, 25x5, 30x3, 30x5 Bearing Bar Thickness: 2.5-10mm
Cross Bar: 5mm,6mm,8mm Cross Bar Pitch: 40, 50, 60, 65, 76, 100 Etc
Certification: ISO 9001 Brand Name: OEM
Application: Platform ,park , Driveway Feature: High Strength, Light Structure, High Bearing.
High Light:

30x5mm Steel Walkway Grating

,

Q195 Steel Walkway Grating

,

OEM Steel Walkway Grating

Grating Trench Drain Cover 30 x 5 mm Steel Walkway Grating Q195





Steel Walkway Grating Description



Steel grid gratings are press-welded by auto-welding machine, the original panle size usually around 1x6mtr. Then they will be cut to size according to the drawings. And we can make the specs as per American standard, European standard, Australian Webforge standard, etc.

For example:19-W-4 is the steel grating mesh size described as per America Standard. It means that the bearing bar pitch is 19/16 (1-3/16) inch which is approximately equal to 30mm, and the cross bar pitch is 4 inch which is approximately equals to 100mm. Therefore, 19w4 steel bar grating is same as steel gratings with mesh size 30x100mm. It is regular type in Chinese Market, and it can be electro-forged by machine directly.



Steel Walkway Grating Specification



Product name
Steel Grating
Grating Style
Plain type, Serrated type, I Type and Serrated I type steel gratings
Surface Treatment
Black/Untreated (U), Hot dip galvanizing (G), Painting (P)
Usage
industry of Power plant, Oil Refineries,Petrochemistry, Chemical Plant, Water and Waste treatment plant, Ship-building, offshore
projects and civil construction (like roads, park) ., etc.



Steel grid gratings Surface Treatment



1) Hot dip galvanized as per ASTM A123 or EN ISO 1461 or special requirement

2) Painted or Powder Coated

3) HDG plus painted/powder coated



Steel grid grating Application



Steel grid gratings are widely used for platform walkways flooring in power plant,boiler,paper making machines,coating equipments,oil and gas projects,offshore/onshore projects, etc.



Steel Walkway Grating Application



Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.

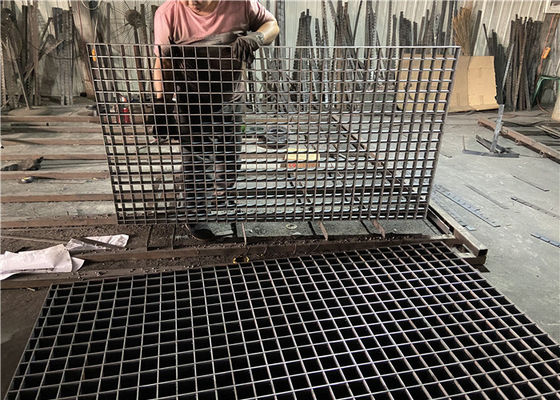

OEM 30x5mm Steel Walkway Grating Trench Drain Cover Q195 0

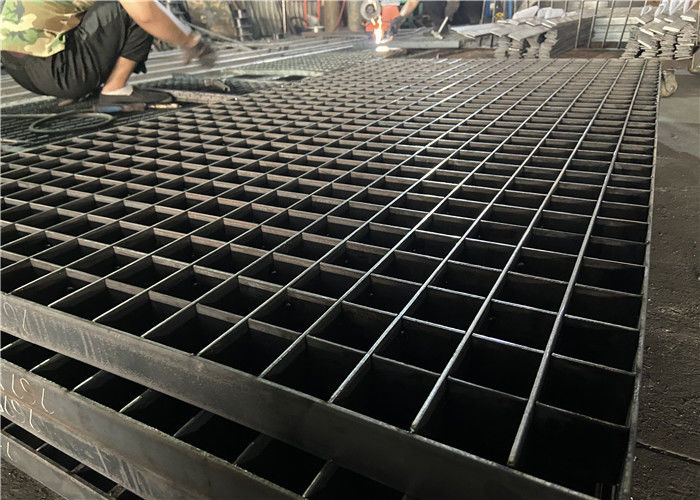

OEM 30x5mm Steel Walkway Grating Trench Drain Cover Q195 1
