Hot Dipped Galvanized 32 X 5mm Q195 Serrated Steel Grating

Hot Dipped Galvanized 32 X 5mm Q195 Serrated Steel Grating
Hot Dipped Galvanized 32 X 5mm Q195 Serrated Steel Grating Hot Dipped Galvanized 32 X 5mm Q195 Serrated Steel Grating

Large Image :  Hot Dipped Galvanized 32 X 5mm Q195 Serrated Steel Grating

Product Details:
Place of Origin: CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G1
Payment & Shipping Terms:
Minimum Order Quantity: 50Pcs
Price: Negotiable
Packaging Details: 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Supply Ability: 5000Pcs Per Month
Detailed Product Description
Material: Q195,Q235 Surface Treatment: Hot Dip Galvanized,Electric Galvanized
Bearing Bar: 20x5, 25x3, 25x4, 25x5, 30x3, 30x5 Bearing Bar Thickness: 2.5-10mm
Cross Bar: 5mm,6mm,8mm Cross Bar Pitch: 40, 50, 60, 65, 76, 100 Etc
Certification: ISO 9001 Brand Name: OEM
Application: Platform ,park , Driveway Feature: High Strength, Light Structure, High Bearing.
High Light:

32 X 5mm Serrated Steel Grating

,

Hot Dipped galvanized serrated grating

,

Q195 Serrated Steel Grating

Hot Dipped Galvanized Platform Serrated Steel Floor Grating 32 x 5mm





Steel Walkway Grating Description



Press-locked steel bar grating is often desirable because its smooth look, clean and excellent support. It exhibits the same strength, long life and openness as welded grating. Materialsinclude mild carbon steel and stainless steel. It is also available in a serrated surface for extra safety.

Spacing range can be custom designed to meet the requirements. This method of manufactureing is particularly flexible that it allows for the production of grating with custom bearing bar spacing. Small quantities can easily be manufactured to suit the precise needs of most applications.



Steel grid gratings are press-welded by auto-welding machine, the original panle size usually around 1x6mtr. Then they will be cut to size according to the drawings. And we can make the specs as per American standard, European standard, Australian Webforge standard, etc.

For example:19-W-4 is the steel grating mesh size described as per America Standard. It means that the bearing bar pitch is 19/16 (1-3/16) inch which is approximately equal to 30mm, and the cross bar pitch is 4 inch which is approximately equals to 100mm. Therefore, 19w4 steel bar grating is same as steel gratings with mesh size 30x100mm. It is regular type in Chinese Market, and it can be electro-forged by machine directly.



Steel Walkway Grating Introduction



(1) Structure: Welding with flat steel and cross/round bars with certain distances.

(2) Features: High strength, light structure, high bearing.

(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.



Steel Walkway Grating Specification




Item Description
Bearing bar

20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

Bearing bar pitch

25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65,76,100,101.6,120,130mm or as customers’ requirement.
Flat bar type Plain, Serrated (tooth-like), I bar (I section)
Materials Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A),Stainless steel,aluminum alloy,etc
Galvanizing standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Steel grating standards A. China: YB/T4001-1998
  B. USA: ANSI/NAAMM (MBG 531-88)
  C. UK: BS4592-1987
  D. Australia: AS1657-1988
  E. Japan: JJS
Surface treatment

Black,Electro galvanized(Cold dip galvanized),Hot dipped galvanized,Painted,Powder coated,or as customers’ requirements.And hot dipped galvanizing is generally recommended.







Steel grid gratings Surface Treatment



1) Hot dip galvanized as per ASTM A123 or EN ISO 1461 or special requirement

2) Painted or Powder Coated

3) HDG plus painted/powder coated





Types of bearing bar:



1).Flat Type: Flat bars can be made from steel strip or slit sheet or from rolled.

2).Serrated Type:Serrated type grating offers users a slip-free surface. It is available with most of the standard bearing bars.

3).I Bar: An extruded bearing bar having a cross sectional shape resembling the letter "I".





Steel Walkway Grating Application



Steel walkway grating is widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.

We are professional factory to design and manufacture standard steel grating and customize according to client's requirements.

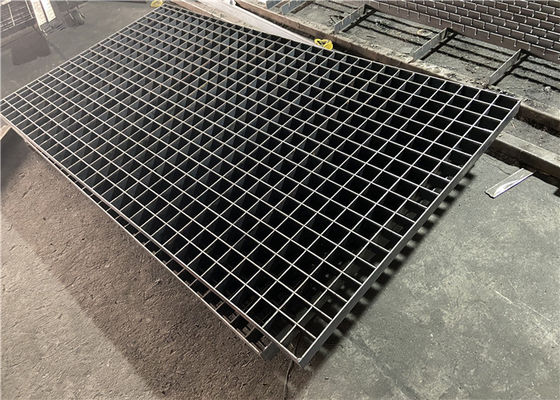

Hot Dipped Galvanized 32 X 5mm Q195 Serrated Steel Grating 0

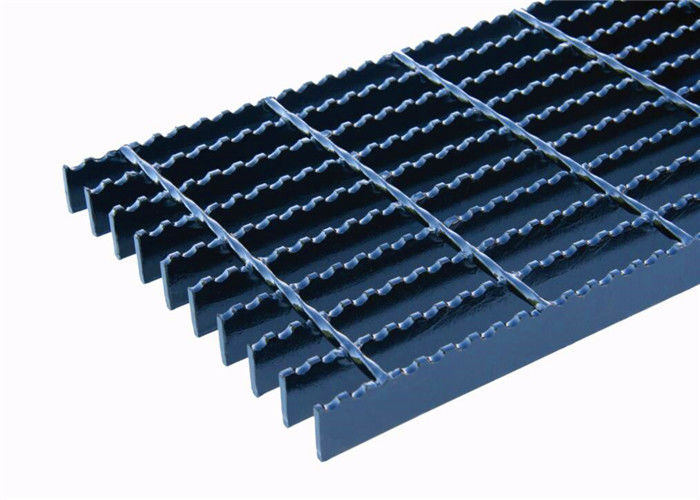

Hot Dipped Galvanized 32 X 5mm Q195 Serrated Steel Grating 1
