24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter

24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter
24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter 24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter

Large Image :  24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001
Model Number: YH-32
Payment & Shipping Terms:
Minimum Order Quantity: 30 Square Meters
Price: Negotiable
Packaging Details: packing in roll and plastic inside and wooden case outside or as your requirement
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 20000 Square Meter/Square Meters per Month
Detailed Product Description
Material: Stainless Steel 302,304,316,304L,316L,321 Weaving: Plain,twill Or Dutch
Feature: Corrosion Resistance Mesh Count: 10-600 Mesh
Certificate: ISO9001:2015 Application: Petro, Chemical, Air,liquid Filter
Wire Diameter: 0.02-2mm Filter Rating: 90%
High Light:

24x24 Stainless Steel Wire Mesh Filter

,

0.3mm Stainless Steel Wire Mesh Filter

,

1x30m Stainless Steel Wire Mesh Filter

Stainless Steel Wire Mesh Filter 24x24 Mesh Count 0.3mm 1x30 meters



Stainless Steel Wire Mesh Filter Weave Style



Plain weave:The most popular a kind of preparation method industrial production and civil life is widely used.

Twill weave :Mainly in the 150 mesh to 600 purpose of Galvanized Steel Wire Mesh 0.3mm weaving use.

Dutch weave :In this method the Galvanized Steel Wire Mesh 0.3mm weaving has good tensile strength,mainly used for liquid and slurry filter.


Stainless Steel Wire Mesh Filter Product Description



Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade's unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.



Stainless Steel Wire Mesh Filter Material List



Material
Stainless Steel Mesh For Filter Cloth
Material
SS 302,SS 304,SS 316 ,SS 304L, SS 3016L ect
Wire dia
0.017mm-5mm


Weave

Type
Plain weave can be woven from 1X1mesh to 635X635 mesh
Plain Dutch weave can be woven from 10X64mesh to 80X700 mesh
Twill Weave can be woven from 20X250mesh to 400X2800 mesh



Stainless Steel Wire Mesh Filter Specification



Stainless Steel Wire Mesh
Mesh/inch Wire Diameter
(mm)
Aperture
(mm)
  Mesh/inch Wire diameter
(mm)
Aperture
(mm)
2mesh 1.80 10.90   60mesh 0.15 0.273
3mesh 1.60 6.866   70mesh 0.14 0.223
4mesh 1.20 5.15   80mesh 0.12 0.198
5mesh 0.91 4.17   90mesh 0.11 0.172
6mesh 0.80 3.433   100mesh 0.10 0.154
8mesh 0.60 2.575   120mesh 0.08 0.132
10mesh 0.55 1.990   140mesh 0.07 0.111
12mesh 0.50 1.616   150mesh 0.065 0.104
14mesh 0.45 1.362   160mesh 0.065 0.094
16mesh 0.40 1.188   180mesh 0.053 0.088
18mesh 0.35 1.060   200mesh 0.053 0.074
20mesh 0.30 0.970   250mesh 0.04 0.061
26mesh 0.28 0.696   300mesh 0.035 0.049
30mesh 0.25 0.596   325mesh 0.03 0.048
40mesh 0.21 0.425   350mesh 0.03 0.042
50mesh 0.19 0.318   400mesh 0.025 0.0385
Width of Stainless Steel Wire Mesh: 0.6m-8m



Stainless Steel Wire Mesh Filter Weave Style:

Plain Weave ,Twill Weave,Dutch Weave,etc.



Stainless Steel Wire Mesh Filter Feature



1. Large capacity of pollutants, high filtration precision, slow pressure rise, long replacement period;
2. High porosity and excellent permeability, low pressure loss, large flow;
3. Corrosion-resistant, high temperature: acid, alkali, organic solvents, drugs and other corrosion,
4. Easy processing, molding, welding;



Stainless Steel Wire Mesh Filter Application



Petroleum, petrochemical equipment, such as the reactor of petrochemical equipment.

Sulfuric acid storage and transportation equipment, such as heat exchangers;

Power plant flue gas desulfurization device, main parts are: absorption tower body, the flue, door plank, internal parts, spray system, etc;

Scrubber and fan in the organic acid processing system;

Water treatment plant, water heat exchanger, papermaking equipment, sulfuric acid, nitric acid equipment, acid, pharmaceutical industry and other chemical equipment, pressure vessel, food equipment;Pharmaceutical factory: centrifuge, reactor, etc.

Product Show of Stainless Steel Wire Mesh Filter

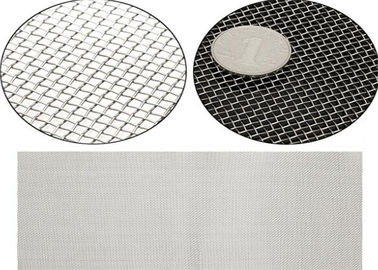

24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter 0

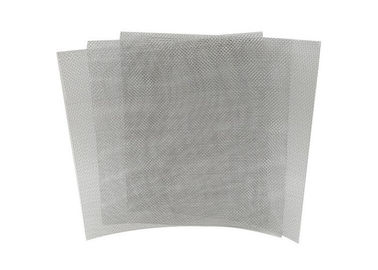

24x24 Mesh Count 0.3mm 1x30m Stainless Steel Wire Mesh Filter 1
