500mm Diameter BTO-28 Galvanized Concertina Coil Fencing

500mm Diameter BTO-28 Galvanized Concertina Coil Fencing
500mm Diameter BTO-28 Galvanized Concertina Coil Fencing 500mm Diameter BTO-28 Galvanized Concertina Coil Fencing

Large Image :  500mm Diameter BTO-28 Galvanized Concertina Coil Fencing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO9001:2008
Model Number: YH-22
Payment & Shipping Terms:
Minimum Order Quantity: 100 Rolls
Price: Negotiable
Packaging Details: Water-proof paper and woven bags
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 10000 Roll/Rolls per Month
Detailed Product Description
Material: Stainless Steel,low Carbon Wire Characteristics: Hard And Beautiful And Sharp
Blade Type: BTO-22,BTO-28,BTO-65, Etc Surface: Galvanized/PVC Coated
Coil Diameterr: 360-1000mm Coil Weight: 10-100kg/Coil
Usage: Security And Safety Zinc Coating: 40-280g/m2
High Light:

Galvanized concertina coil fencing

,

500mm Diameter concertina coil fencing

,

BTO-28 concertina coil fencing

Concertina Razor Barded Wire Fencing 500mm Diameter BTO-28 Galvanized



Quick Details

Place of Origin:Hebei, China
Brand Name:YUANHAI
Material:Iron Wire
Surface Treatment:galvanized
Type:Razor Barbed Wire Coil
Razor Type:Cross Razor
Usage:Protection
Razor type:Single Razor
Razor thickness:0.5mm-0.6mm +/-0.05mm
Feature:Sharp/solid/easy to instal

Razor Barbed Wire Description



Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.



Concertina Wire Materials


Blade: steel plate by one-time punching moulding
or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire
hot dipped galvanized steel wire
or stainless steel wire


Razor Barbed Wire Specification



Reference
Number
Thickness
mm
Wire Dia.
mm
Barb Length
mm
Barb Width
mm
Barb Spacing
mm
BT0-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BT0-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BT0-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BT0-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2



Outer diameter No.of Loops

Standard Length

per Coil

Type Notes
450mm 33 7M-8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 54 11M-15M CBT-65 Single coil
500mm 102 15M-18M BTO-12.18.22.28.30 Cross type
600mm 86 13M-16M BTO-12.18.22.28.30 Cross type
700mm 72 12M-15M BTO-12.18.22.28.30 Cross type
800mm 64 13M-15M BTO-12.18.22.28.30 Cross type
960mm 52 12M-15M BTO-12.18.22.28.30

Cross type





Razor Barbed Wire Feature



Anti-Climb
Protects against cut-through
Excellent visibility
Quick and simple installation
High cost dffective
Low maintenance costs
Convenient dilivery
Easy installment
The unique modal
Bring wonderful protective effects



Razor Barbed Wire Packing Details

1. compression rolls, 5rolls, 10rolls, or more rolls as one bundle
2. water-proof paper inside with woven bag outside
3. 1roll, 3rolls or 5rolls in one carton
4. as customer request



Razor Barbed Wire Application



Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.

Also used for division of railway, highway, agricultural fencing, etc.



Razor Barbed Wire Detail Images

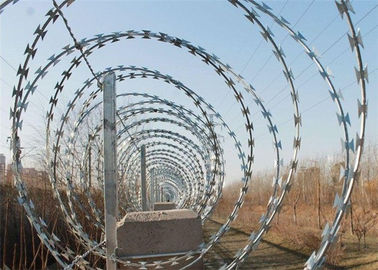

500mm Diameter BTO-28 Galvanized Concertina Coil Fencing 0

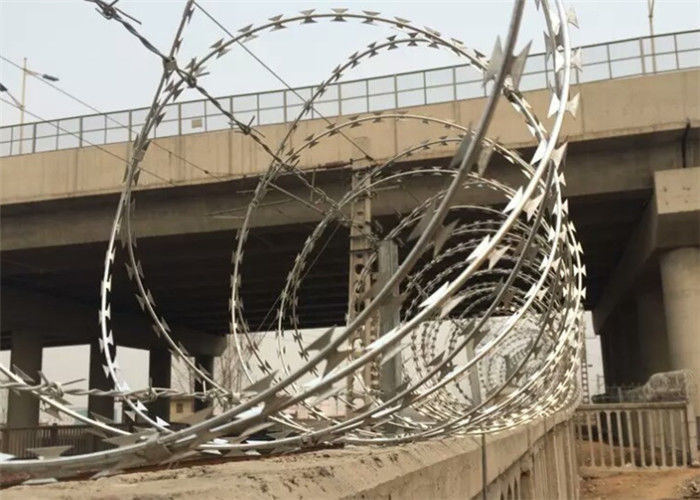

500mm Diameter BTO-28 Galvanized Concertina Coil Fencing 1
