| Material: | Stainless Steel,low Carbon Wire | Characteristics: | Hard And Beautiful And Sharp |
|---|---|---|---|
| Blade Type: | BTO-22,BTO-28,BTO-65, Etc | Surface: | Galvanized/PVC Coated |
| Coil Diameterr: | 360-1000mm | Coil Weight: | 10-100kg/Coil |
| Usage: | Security And Ety | Zinc Coating: | 40-280g/m2 |
| Highlight: | diamond concertina wire fencing,galvanized concertina wire fencing,500mm diameter concertina wire fencing |
||
Razor Barbed Wire 450mm Coil Diameter BTO-28 100g Zinc Coating
Description of Razor Barbed Wire
Razor barbed wire is a mesh of metal strips with sharp edges whose purpose is to prevent passage by humans. The term "razor barbed wire", through long usage, has generally been used to describe barbed tape products. While razor barbed wire is much sharper than the standard barbed wire, it is named after its appearance, but is not actually razor sharp. However, the points are very sharp and made to rip and grab onto clothing and flesh.
Common specification of Razor Barbed Wire
• standard: BTO-22
• Crossed type
• blade thickness: 0.5mm
• wire diameter: 2.5mm
• blade length: 22mm
• blade width:16mm,
• blade spacing: 35mm
• standard covering length: 8m
• surface treatment: hot dipped galvanized plate stamping
Zinc Coating of Razor Barbed Wire
1, Normal hot dipped galvanized razor wire(40-60g)
2, Heavily zinc coated razor wire (70-270g)
3, Stainless steel 304/316 grades razor wire
Normal Types of Razor Barbed Wire
Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
Stainess steel core wire and blade
PVC coated core wire and bla
Or hot-dipped galvanized core wire+stainless steel blade
Hot Sale Size: BTO22, CBT65
Razor Barbed Wire Specification
| Outside Diameter | No. of Loops | Standard covering length | Blade Type | Notes |
| 450mm | 33 | 7-8m | CBT-60. 65 | single coil |
| 500mm | 56 | 12-13m | CBT-60. 65 | single coil |
| 700mm | 56 | 13-14m | CBT-60. 65 | single coil |
| 960mm | 56 | 14-15m | CBT-60. 65 | single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 700mm | 56 | 10-12m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10. 12. 18. 22. 28. 30 | cross type |
Razor Barbed Wire Feature
Anti-Climb
Protects against cut-through
Excellent visibility
Quick and simple installation
High cost dffective
Low maintenance costs
Convenient dilivery
Easy installment
The unique modal
Bring wonderful protective effects
Razor Barbed Wire Packing Details
Packing: Water-proof paper and woven bags
The package can be also according to your demand.
Razor Barbed Wire Application
Razor barbed wire as a premier security materials with a efficient ability to enhance the whole mesh fence system meanwhile the gallow uncalled strange person ,make the clear countries border line ,protecting and overawe.Concertina barbed wire is the things like this compare with barbed wire its more powerful and more conditions control for you house site security .

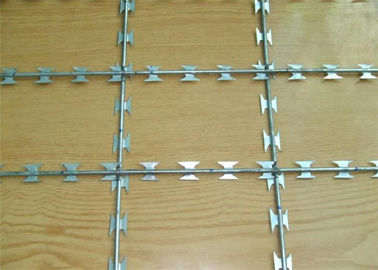

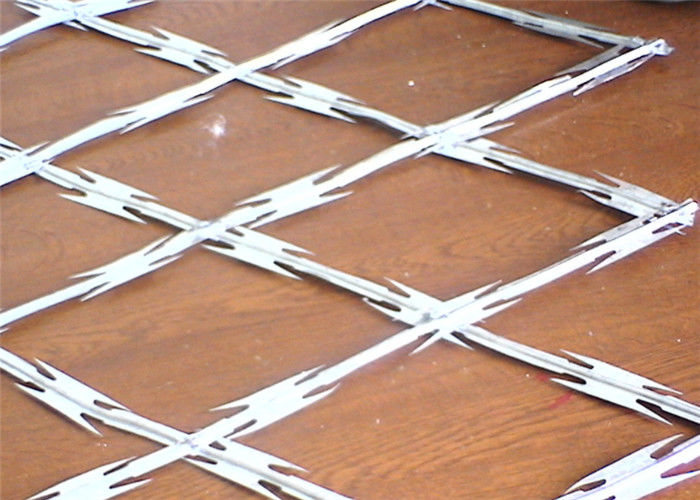

Razor Barbed Wire Detail Images
Concertina Wire Tape Welded Concertina Wire Fence
